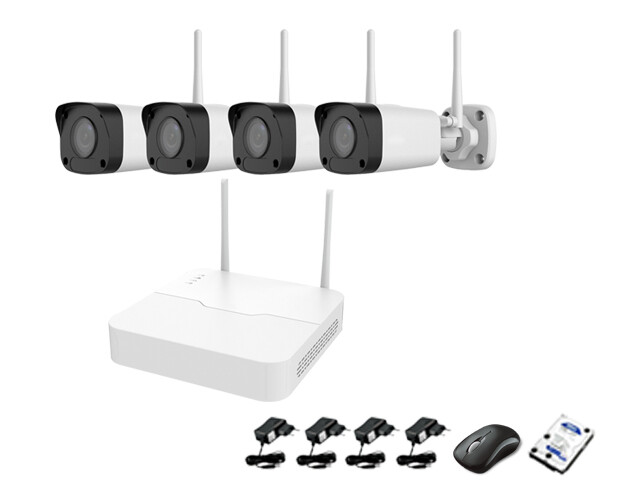

Qube Wireless NVR CCTV Kit 4ch 1080P Indoor/Outdoor

SKU 96136
P 12,799.00
In stock
1
Product Details

P2,296.49 / Month for 6 Months. Pls call our Stores to inquire about qualified credit card.




Features:

NVR Kit 4-channel input

  • Up to 1080p resolution
  • Support two-antenna
  • Embedded WiFi Module
  • Support cloud upgrade
  • 1 SATA HDD, Up to 10TB for each HDD
  • Support Ultra 265/H.265/H.264 video formats

Bullet Camera

  • 1080P resolution
  • Triple streams
  • Smart IR, 30M (98ft) IR Distance
  • IR anti-reflection window
  • Ultra 265,H.265, H.264, MJPEG
  • Optical glass window with higher light transmittance




Specification:

NVR Wifi Kit

  • Video/Audio Input
  • IP Video Input 4-ch

Network

  • Incoming Bandwidth 40Mbps
  • Outgoing Bandwidth 40Mbps
  • Remote Users 128
  • Protocols P2P, UPnP, NTP, DHCP, PPPoE

Video/Audio Output

  • HDMI: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768
  • HDMI/VGA Output /60Hz
  • VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768/60Hz
  • Recording Resolution 1080p/960p/720p/D1/2CIF/CIF
  • Audio Output 1-ch, RCA
  • Synchronous Playback 4-ch
  • Corridor Mode Screen 3/4

Decoding

  • Decoding format Ultra 265/H.265/H.264
  • Live view/ Playback 1080p/960p/720p/D1/2CIF/CIF
  • Capability 4 x 1080P@20, 4 x 720P@30

Hard Disk

  • SATA 1 SATA interface
  • Capacity Up to 10TB for each HDD

External Interface

  • Network Interface 1 RJ45 10M/100M self-adaptive Ethernet Interface
  • USB Interface Rear panel:2 x USB2.0

Wi-Fi

  • Frequency 2.4GHz
  • Transmission Rate 150Mbps
  • Wireless Standards IEEE 802.11b/g/n
  • Wireless Range 280m(open environment)

General

  • Power Supply 12V DC
  • Power Consumption: ≤ 9 W( without HDD )
  • Working Environment -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity
  • Dimensions(W×D×H) 205mm ×228mm ×47mm (8.1" × 9.0"×1.9")
  • Weight ( without HDD ) ≤ 0.98Kg(2.16lb)

Bullet Camera

  • Sensor 1/2.7", 2.0 megapixel, progressive scan, CMOS
  • Lens 4.0mm@F2.0
  • DORI Distance Lens 4mm Detect(60m) Observe(24m) Recognize(12m) Identify(6m)
  • Angle of view(H) 86.5°
  • Angle of View (V) 44.1°
  • Angle of View (O) 106.4°
  • Adjustment angle Pan: 0°~360° Tilt: 0°~90° Rotate: 0°~360°
  • Shutter Auto/Manual, 1/6~1/100000 s
  • Minimum Illumination Colour: 0.02 Lux (F2.0 AGC ON) 0 Lux with IR on
  • Day/Night IR-cut filter with auto switch (ICR)
  • Digital noise reduction 2D/3D DNR
  • S/N >52dB
  • IR Range Up to 30m (98 ft) IR range
  • Defog Digital Defog
  • WDR DWDR

Video

  • Video Compression Ultra 265, H.265, H.264, MJPEG
  • H.264 code profile Baseline profile, Main Profile

Frame Rate

  • Main Stream:2MP (1920×1080): Max. 20 fps;
  • Sub Stream: 720P (1280×720): Max. 20 fps;
  • Third Stream: 4CIF (704×576): Max. 20 fps
  • 9:16 Corridor Mode Supported
  • HLC Supported
  • BLC Supported
