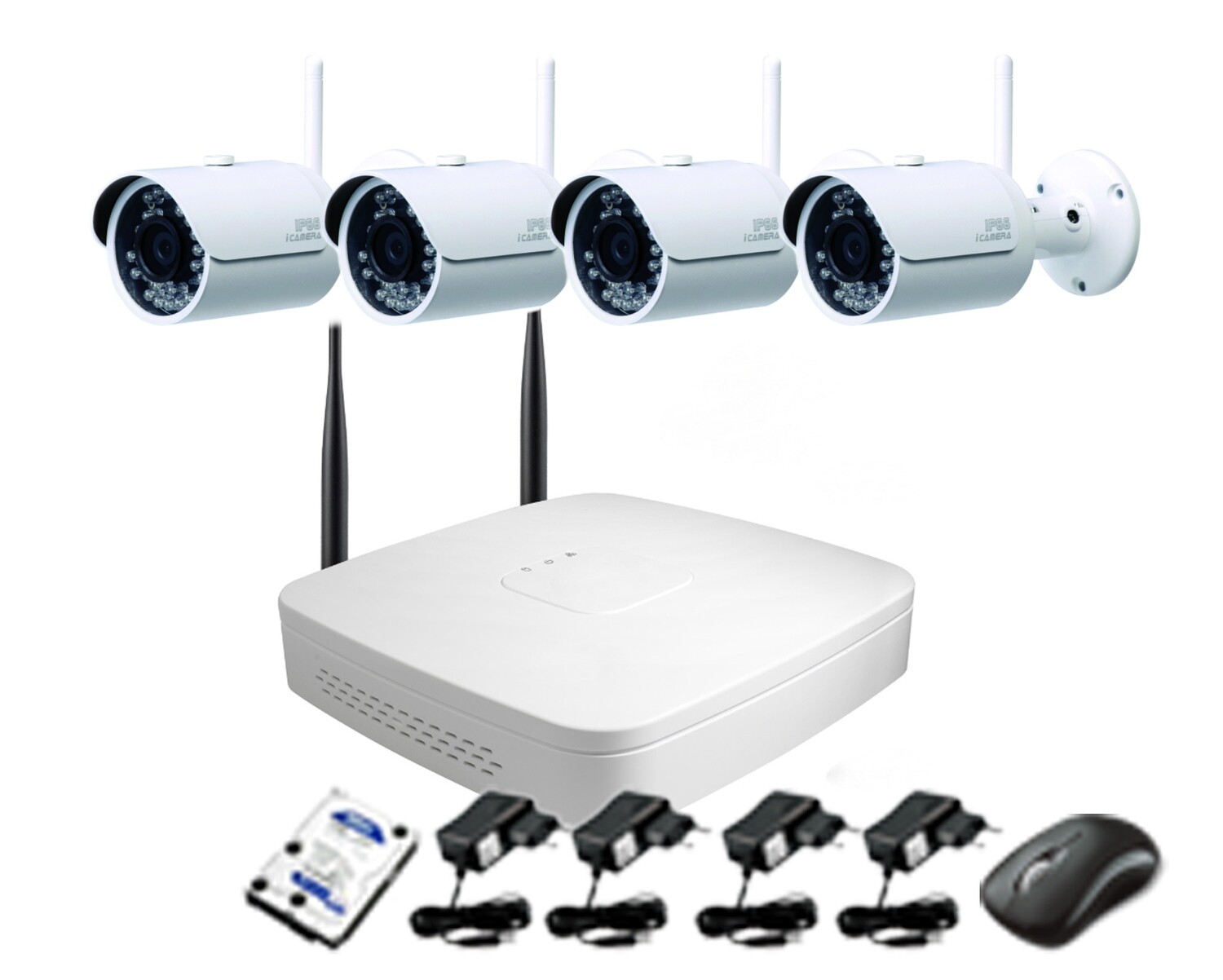

Qube Wireless NVR CCTV Kit 4ch 1080P Indoor/Outdoor Package 2

98264
P 13,099.00
In stock
1
Product Details

Please call our Stores to inquire about qualified credit card.




NVR Specification

  • Model NVR-4CH-WF
System
  • Main Processor Dual-core embedded processor
  • Operating System Embedded LINUX
Video & Audio
  • IP Camera: Input 4 channel
  • Two-way: Talk 1 channel Input, 1 channel Output, RCA
Display
  • Interface: 1 HDMI, 1 VGA
  • Resolution: 1920×1080, 1280×1024, 1280×720, 1024×768
  • Display: Split 1/4
  • OSD Camera: title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
  • Compression: H.264/MJPEG
  • Resolution: 5Mp(2560×1920)/3Mp(2048×1536)/1080P(1920×1080)/720P(1280×720)/D1 (704×576/704×480)
  • Record Rate: 80Mbps
  • Bit Rate: 48~ 8192kbps
  • Record Mode: Manual, Schedule(Regular(Continuous), MD, Alarm), Stop
  • Record Interval: 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection
  • Trigger Events: Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips
  • Video Detection: Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Playback & Backup
  • Sync: Playback 1/4
  • Search Mode: Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
  • Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
  • Backup Mode: USB Device/Network/Internal SATA burner
Network
  • Ethernet: 1 RJ-45 port (10/100Mbps)
  • Wireless Network: Built-in WiFi module, 2 WiFi Antenna
  • Network: Function HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Qube IP camera, DVR, NVS and etc.)
  • Max. User Access: 128 users
  • Smart Phone iPhone, iPad, Android, Windows Phone
Storage
  • Internal HDD: 1 SATA port, up to 4TB
Auxiliary Interface
  • USB 2: ports (2 Rear),USB2.0
General
  • Power Supply: DC12V/2A
  • Power Consumption: 10W(without HDD)
  • Working Environment: -10°C~+55°C / 10%~90%RH / 86~106kpa
  • Dimension: (W×D×H) Smart 1U, 205mm×205mm×40mm / 8.0" x 8.0" x 1.5" inches
  • Weight: 0.5KG(without HDD)


CCTV Specification

  • Model Finch
Camera
  • Image Sensor : 1/3”2Megapixel progressive scan CMOS
  • Effective Pixels: 2048(H)x1536(V)
  • Scanning System: Progressive
  • Electronic Shutter: Speed Auto/Manual 1/3(4)~1/10000
  • Min. Illumination: Color: 0. 1Lux/F1.6; 0Lux/F1.6 (IR on)
  • S/N Ratio: More than 50dB
  • Video Output: N/A

Camera Features

  • Max. IR LEDs Length: 30m
  • Day/Night: Auto(ICR) / Color / B/W
  • Backlight Compensation: BLC /HLC /DWDR
  • White Balance: Auto/Manual
  • Gain Control: Auto/Manual
  • Noise Reduction: 2D
  • Privacy Masking: Up to 4 areas
Lens
  • Focal Length: 3.6mm
  • Max Aperture F1.8(F1.6)
  • Focus Control: Manual
  • Angle of View: H: 72°(44°)
  • Lens Type: Fixed lens
  • Mount Type: Board-in Type
Video
  • Compression: H.264H/H.264B/H.264/ MJPEG
  • Resolution: 1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480) /CIF(352×288/352×240)
  • Frame Rate Main Stream: 1080P(1 ~ 25/30fps)
  • Sub Stream: D1/CIF(1 ~ 25/30fps)
  • Bit Rate: H.264H: 16K ~ 8192Kbps
Audio
  • Compression: N/A
  • Interface: N/A
Network
  • Ethernet: RJ-45 (10/100Base-T)
  • Wi-Fi Wi-Fi: (IEEE802.11b/g/n)
  • Wi-Fi Range: 50m(open field)
  • Protocol: IPv4/IPv6, HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, IGMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS
  • Compatibility: ONVIF, CGI
  • Max. User Access: 20 users
  • Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
  • Memory Slot: N/A
  • RS485: N/A
  • Alarm: N/A
  • PIR Sensor Range: N/A
General

  • Power Supply: DC12V
  • Power Consumption: <7W
  • Working Environment: -30°C~+50°C, Less than 95%RH
  • Ingress Protection: IP66
  • Vandal Resistance: N/A
  • Dimensions: Φ70mm×66mm×155mm / 2.7" x 2.5" x 6.1" inches
  • Weight: 0.42Kg
