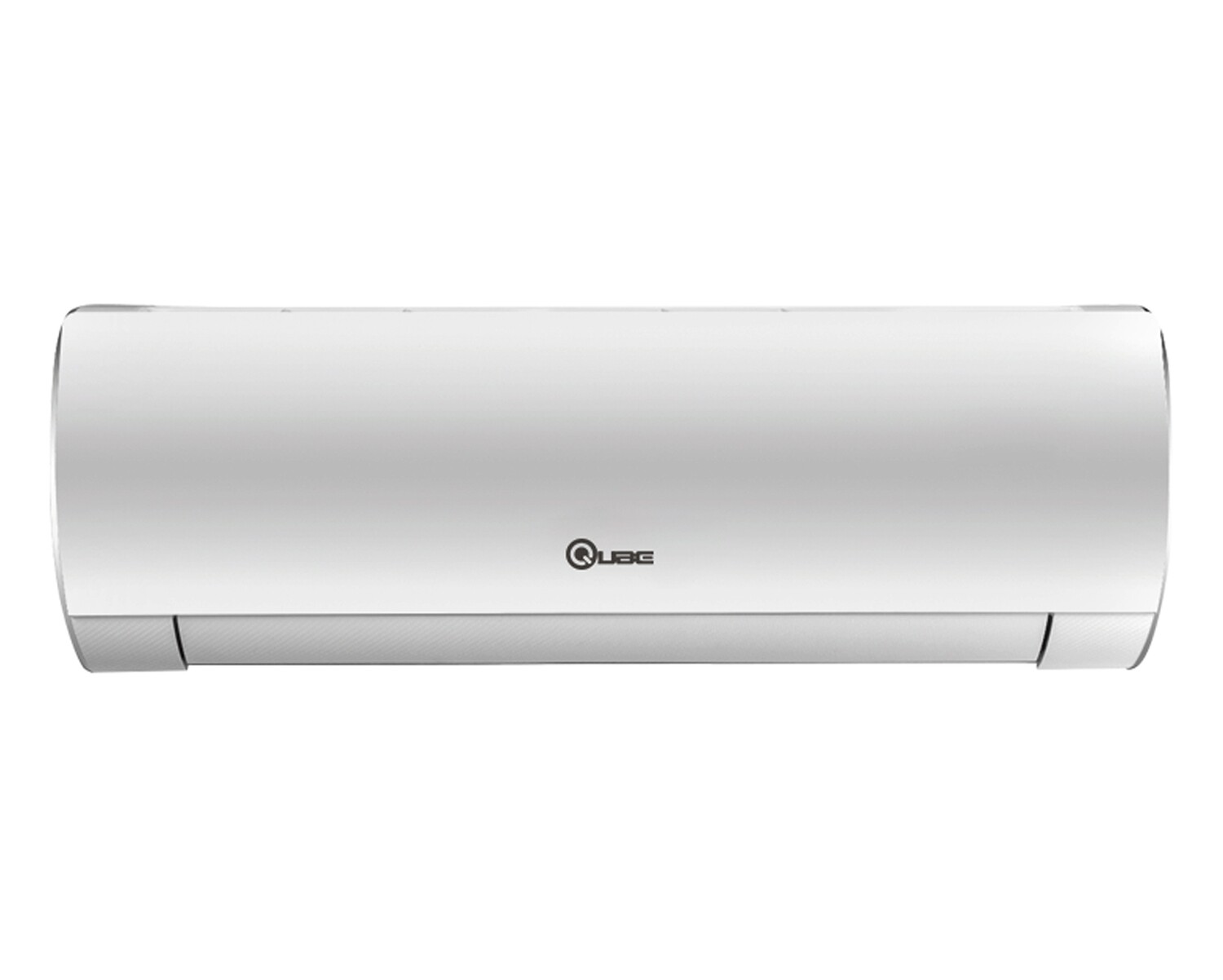

Qube Split Type 1.5hp Inverter Air Conditioner

More Inverter Aircon option Click here

*Indoor and Outdoor Unit Only. Wires, Copper Tube is not included.

• BTU: 12000btu
• Rated Voltage: 220-240V~
• Rated Frequency: 50Hz
• Phases: 1
• Power Supplier Mode: Indoor
• Cooling Capacity: 3517W
• Cooling Power Input: 1065
• Cooling Power Current: 6.7A
• Rated Input: 1600W
• Rated Current: 7.6A
• Air Flow Volume (SH/H/M/L/SL): 540/500/430/300- m3/h
• EER: 3.3 W/W
• Application Area: 15.22 M2
• Indoor Unit
  • Fan Type: Cross-Flow
  • Diameter Length (DXL): Φ93X580mm
  • Fan Motor Cooling Speed (SH/H/M/L/SL): 20W
  • Output Of Fan Motor: 20W
  • Fan Motor RLA: 0.22A
  • Evaporator Form: Aluminum Fin-Copper Tube
  • Pipe Diameter: Φ7.94mm
  • Row-Fin Gap: 1-1.2mm
  • Swing Motor Model: MP24AN
  • Fuse: 3.15A
  • Sound Pressure Level (SH/H/M/L/SL): 41/37/34/28/-dB (A)
  • Sound Power Level (SH/H/M/L/SL): 51/47/44/38/-dB (A)
  • Dimension (W*H*D): 81.9*25.6*18.9cm
  • Dimension of Package (L*W*H): 86.8*33*26cm
  • Net Weight: 8.5Kg.
  • Gross Weight: 10Kg.
• Outdoor Unit
  • Compressor Type: Rotary
  • Compressor RLA: 4.6A
  • Compressor Power Input: 995W
  • Throttling Method: Capillary
  • Operation Temp: 16~30°C
  • Ambient Temp (Cooling): 18~59°C
  • Condenser Form: Aluminum Fin-Copper Tube
  • Pipe Diameter: Φ5mm
  • Rows-Fin Gap: 1-1.3mm
  • Coil Length (L*D*W): 71*1.14*49.5cm
  • Fan Motor Speed: 860rpm
  • Fan Motor Capacitor: 2.5μF
  • Air Flow Volume of Outdoor Unit: 1200 m3/h
  • Fan Diameter: Φ400mm
  • Climate Type: T1
  • Isolation: I
  • Moisture Protection: IPX4
  • Permissible Excessive Operating Pressure for the Discharge Side: 4.3MPa
  • Permissible Excessive Operating Pressure for the Suction Side: 2.5MPa
  • Dimension (W*H*D): 78.2*54*32cm
  • Dimension of Package (L*W*H): 82.3*35.8*59.5cm
  • Net Weight: 26Kg
  • Gross Weight: 28.5Kg
  • Refrigerant: R410A
  • Refrigerant Charge: 0.54Kg
