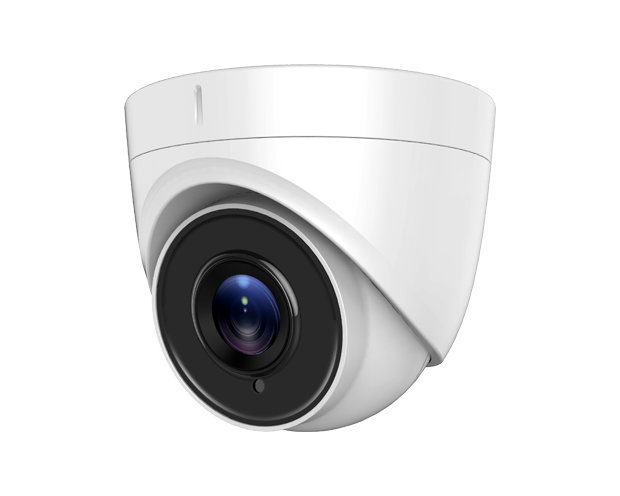

Qube SWIFT 8.3MP 60M IR DOME CCTV TVI CAMERA
Product Details
More HDTVI Camera Options, Click here
Features:
- 8.3 Megapixel high-performance CMOS
- Ultra-low light
- 3840 × 2160 resolution
- 3.6 mm, fixed focal lens
- 120 dB true WDR, 3D DNR
- EXIR 2.0, smart IR, up to 60m IR distance
- IP67
Camera
- Image Sensor:8.29 MP high performance CMOS
- Effective Pixels:3840 (H) × 2160 (V)
- Shutter Time:PAL: 1/12.5 s to 1/10,000 s NTSC: 1/15 s to 1/10,000 s
- Lens Mount: M12
- Adjustment Range : Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
- Day& Night: IR cut filter with auto switch
- Video Frame Rate: PAL: 8 MP@12.5fps, 5 MP@20fps, 4 MP@25fps, 1080p@25fps
- NTSC: 8 MP@15fps, 5 MP@20fps, 4 MP@30fps, 1080p@30fps
- HD Video Output: 1 Analog HD output
- Synchronization: Internal Synchronization
Menu
- D/N Mode: Auto / Color / B/W
- Auto White Balance: Auto/Manual/Natural
- BLC: Support
- Language: English
General
- Operating Conditions: -40 °C - 60 °C (-40 °F - 140 °F)
- Humidity 90% or less (non-condensing)
- Power Supply: 12 VDC±25%
- Weather Proof: IP67
- IR Range: Up to 60m
- Communication : Up the coax
- Protocol: HIKVISION-C(Coaxitron)
- Dimension: ? 109.8 mm × 96.3 mm (? 4.32" × 3.79" )
- Weight: Approx. 360 g (0.79 lb.)
