Qube LARK 1.3MP PINHOLE / 3.6MM LENS / SMART DETECTION / POE

SKU 00373
P 7,350.00
In stock
1
Product Details

More IP Deluxe Bullet Camera Options, Click here

P1,298.50 / Month for 6 Months. Pls call our Stores to inquire about qualified credit card.




Daytime Demo:



Smart Face Detection:

1. Tripwire

Setup-event-IVS analyse-tripwire

(1) Enable Tripwire

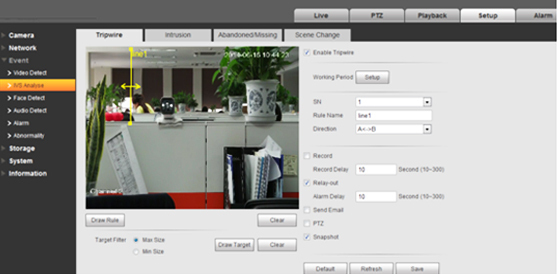

(2) Draw rule, in the state of editing shows yellow, after the completion of the displayed shows blue, as pic 1 , and save it;

(3) when there is somebody intrude the area ,the display shows red.

2. Intrusion

Setup-event-IVS analyze-intrusion

(1) Enable Intrusion;

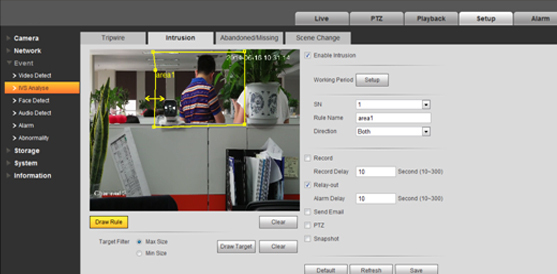

(2) Draw rule, in the state of editing shows yellow, after the completion of the displayed shows blue, as pic 2 , and save it;

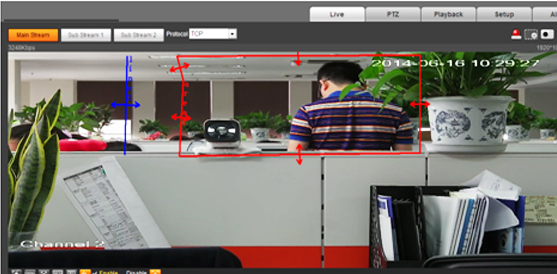

(3) when there is somebody intrude the area ,the display shows red, as pic 3

3. Abandoned/missing

Setup-event-IVS analyse-intrusion

(1) Enable Abandoned/missing, when this function is enable, the Intrusion is untenable;

(2) Draw rule, in the state of editing shows yellow, after the completion of the displayed shows blue, as pic 4 , and save it;

(3) when something is missing or Abandoned,the display shows red.

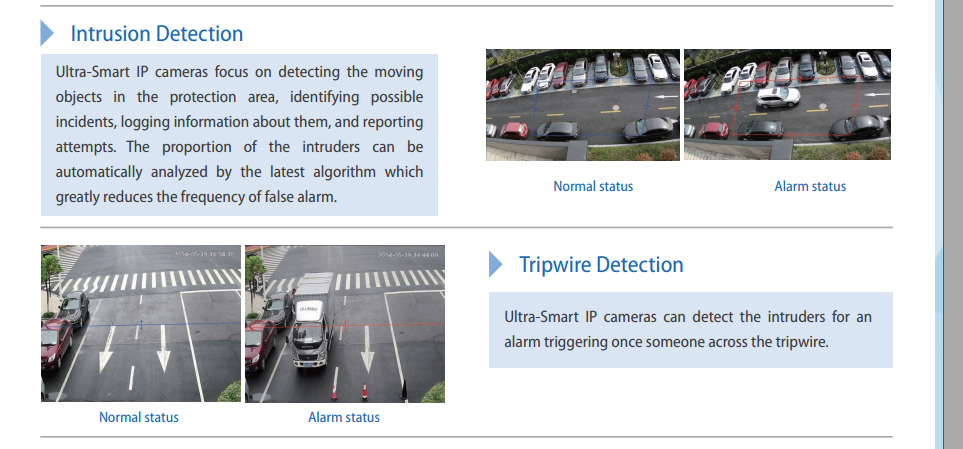

Smart Detection:

Specification
  • Model LARK P-IP

Camera

  • Image Sensor: 1/3”1.3Megapixelprogressive scanCMOS
  • Effective Pixels: 1280(H)x960(V)
  • Scanning System: Progressive
  • Operating System: Embedded LINUX
  • Electronic Shutter Speed: Auto/Manual, 1/4~1/10000s
  • Min. Illumination: 0. 01Lux/F2.8 (Color), 0.001Lux/F2.8(B/W)
  • S/N Ratio: More than 50dB
  • Video Output: N/A
Camera Features
  • Max. IR LEDs: Length N/A
  • Day/Night: Auto(Electronic)/Color/B/W
  • Backlight Compensation: BLC / HLC/WDR(100dB)
  • White Balance: Auto/Manual
  • Gain Control: Auto/Manual
  • Noise Reduction: 3D
  • Privacy Masking: Up to 4 areas
Lens
  • Focal Length: 3.7mm
  • Max Aperture: F2.8
  • Focus Control: Manual
  • Angle of View: 77°
  • Lens Type: Fixed lens
  • Mount Type: Board-in Type
Video
  • Compression: H.264/MJPEG
  • Resolution: 1.3M(1280×960)/720P(1280×720)/D1(704×576)/CIF(352× 288)
Frame Rate
  • Main Stream: 1.3M/720P(1 ~ 25/30fps)
  • Sub Stream: D1/CIF(1 ~ 25/30fps)
  • Bit Rate: H.264: 48K ~ 8Mbps
Audio
  • Compression: G.711a / G.711u/PCM
  • Interface: 1/1 channel In/Out
Smart Function
  • Smart detection Tripwire
  • Intrusion
  • Scene change
  • Missing/Abandoned
  • Audio detect
  • Face detect
Network
  • Ethernet: RJ-45 (10/100/1000Base-T)
  • Wi-Fi: N/A
  • Protocol: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
  • Compatibility: ONVIF,PSIA,CGI
  • Max. User Access: 20 users
  • Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
  • Memory Slot: Micro SD, Max 64GB
  • RS485: 1 port
  • Alarm 1/1 channel: In/Out
General
  • Power Supply: DC12V, PoE (802.3af)
  • Power Consumption: Max 7W
  • Working Environment: -30°C~+60°C, Less than 95% RH
  • Ingress Protection: N/A
  • Dimensions: 109.7mm×82.8mm×24.0mm
  • Weight: 0.46Kg
