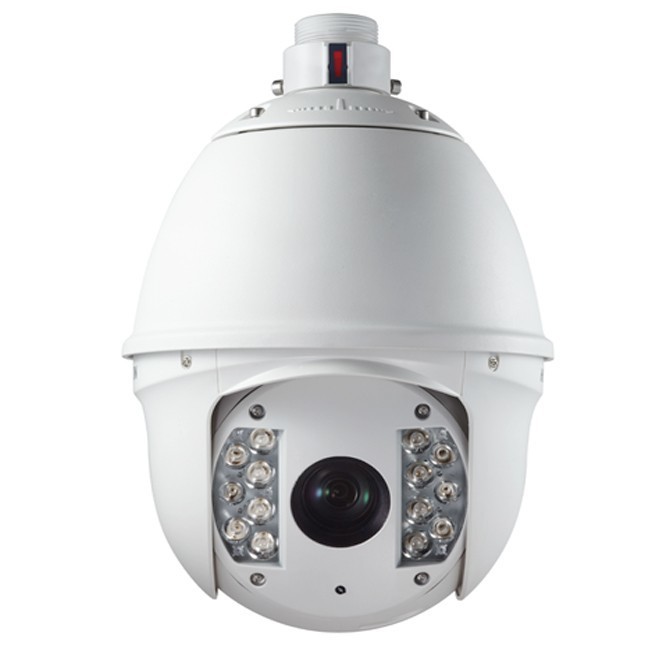

Qube IPTZ18X1H 1.3MP / 20X ZOOM / 120M IR IP PTZ CAMERA

SKU 00386
P 25,599.00
In stock
1
Product Details

More IP Deluxe PTZ Camera Options, Click here

P4,522.49 / Month for 6 Months. Pls call our Stores to inquire about qualified credit card.




Specification:

  • Model Qube
  • Ceiling Bracket
Camera
  • Image Sensor: 1/3'' Progressive Scan CMOS
  • Effective Pixels: 1280(H)x960(V)
  • Signal System: PAL/NTSC
  • Minimum Illumination: Color: 0.05Lux@( F1.4, AGC ON), B/W: 0.005Lux@( F1.4, AGC ON)
  • White Balance: Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
  • AGC: Auto/Manual
  • S/N Ratio: ≥ 50dB
  • BLC: ON/OFF
  • Shutter Time: 50Hz: 1/25-1/10,000s, 60Hz: 1/30-1/10,000s
Day& Night: ICR
  • Digital Zoom: 16X
  • Privacy Masking: Up to 24 zones, and support up to 8 zones masked simultaneously in 1 image
  • Auto Focus: Auto / Semi-automatic / Manual
Lens
  • Focal Length: 4.3-86.0mm, 20x
  • Zoom Speed: Approx.5s(Optical Wide-Tele)
  • Angle of View: 54.1-3.2 degree (Wide-Tele)
  • Minimum Working Distance: 10-1,500mm(Wide-Tele)
  • Aperture Range: F1.4- F2.6
Pan & Tilt
  • Pan Range: 360°endless
  • Pan Speed: Pan Manual Speed: 0.1°-160°/s, Pan Preset Speed: 160°/s
  • Tilt Range: -2°-90° (Auto Flip )
  • Tilt Speed: Tilt Manual Speed: 0.1°-120°/s, Tilt Preset Speed: 120°/s
  • Proportional Zoom: Rotation speed can be adjusted automatically according to zoom multiples
  • Number of Preset: 256
  • Patrol: 8 patrols, up to 32 presets per patrol
  • Pattern: 4 patterns, with the recording time not less than 10 minutes per pattern
  • Power loss recovery: Support
  • Park Action: Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
  • PTZ Position Display: ON/OFF
  • Freeze Frame: Support
  • Infrared
  • IR irradiation distance: 120m
  • IR irradiation angle: Adjustable by zoom
Alarm
  • Alarm Input 7 Inputs
  • Alarm output 2 channel relay output, with configurable alarm actions
  • Alarm Actions Preset, patrol, pattern, SD/SDHC card recording, relay output, notifi cation on client
Input & Output
  • Monitor output 1.0Vp-p / 75Ω, NTSC (or PAL) composite, BNC
  • Audio Input: Audio input (LINE input), 2-2.4Vp-p; output impedance: 1KΩ, ±10%
  • Audio output Line level, impendance: 600Ω
Network
  • Ethernet 10Base -T, /100Base-TX, RJ45 Connector
  • Max.Image Resolution: 1280×960
  • Frame Rate: 50Hz:25fps(1280×960), 25fps (1280×720), 60Hz:30fps(1280×960), 30fps (1280×720)
  • Image Compression: H.264/MJPEG/MPEG4
  • Audio Compression G.711ulaw/G.711alaw/G.726
  • Protocols: IPv4, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,
  • RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
  • No. of Simultaneous Users: Up to 10 users
Dual Stream: Support
  • Mini SD Card: Manual REC / alarm REC, built-in SD/SDHC slot, up to 32GB
  • User/Host Level: Up to 16 users,3 Levels: Administrator, Camera control, Live view only
  • Security Measures: User authentication (ID and PW), host authentication (MAC address) Client GUI
  • Camera Control: Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging,
  • Iris, preset calling and programming, auto mode
  • Camera Name: Up to 32 characters
  • Date & Time Display: Time: Week: Date, 6 formats on the Client
  • Reading Patrol Message: Display and reading of preset message contained in each patrol via client software
Fiber Optical Interface
  • (Available for Fiber dome)
  • Data Mode: 10Base-T / 100Base-TX
  • Physical Interface: FC
  • Fiber Wavelength: TX1310/RX1550nm
  • Fiber Type: Single Fiber/Single mode
  • Transmission Distance: 20km
General
  • Menu Language: English
  • RS-485 Protocols: QUBE, self-adaptive
  • Power Supply: 24 VAC(only available for -A model), 12 VDC(only available for -D model)
  • Power Consumption: Max. 50W(IR LED On), Max. 35W(IR LED Off)
Working
  • Temperature/Humidity: -30°C-65°C(-22°F-149°F)(outdoor) / 90% or less
  • Protection Level: IP66 standard (outdoor dome) / TVS 4,000V lightning protection, surge protection
  • and voltage transient protection
  • Mounting: Various mounting modes optional
  • Dimensions: 9.6"×15.7" (Outdoor)
  • Weight (approx.): 5.4kg(12.13Ibs)
