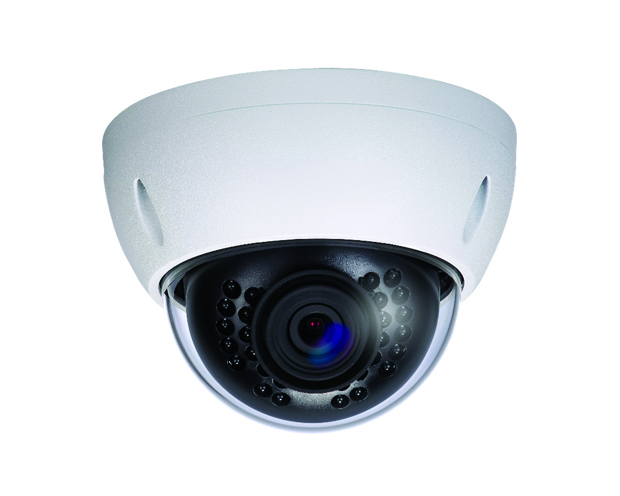

Qube Dome Wireless GAMEBIRD WF-D2M

P795.00 / Month for 6 Months. Pls call our Stores to inquire about qualified credit card.

Specification

• Model Gamebird

• Image Sensor 1/3” 2Megapixel CMOS
• Effective Pixels 2048 (H)x1536(V)
• Scanning System Progressive
• Electronic Shutter Speed Auto/Manual, 1/3(4)~1/10000s
• Min. Illumination 0. 1Lux/F1.8(Color),0Lux/F1.8 (IR on)
• S/N Ratio More than 50dB
• Video Output N/A

• Max. IR LEDs Length 30m
• Day/Night Auto(ICR)/Color/B/W
• Backlight Compensation BLC / HLC / DWDR
• White Balance Auto/Manual
• Gain Control Auto/Manual
• Noise Reduction 2D
• Privacy Masking Up to 4 areas

• Focal Length 3.6mm
• Max Aperture F1.8(F2.0,F1.6)
• Focus Control Manual
• Angle of View H:71.9°(90°/45°)
• Lens Type Fixed lens
• Mount Type Board-in Type

Video

• Compression: H.264/ MJPEG
• Resolution: 1080P(1920×1080) / 720P(1280×720) / D1(704×576/704×480) / CIF(352×288/352×240)
• Frame Rate Main Stream: 1080P/720P(1 ~ 25/30fps)
• Sub Stream: D1/CIF(1 ~ 25/30fps)
• Bit Rate: H.264: 16K ~ 8192Kbps

• Compression: N/A
• Interface: N/A

• Ethernet: RJ-45 (10/100Base-T)
• Wi-Fi: (802.11b/g/n)
• Protocol: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
• Compatibility: ONVIF,CGI
• Max. User Access: 20 users
• Smart Phone iPhone, iPad, Android, Windows Phone

Auxiliary Interface

• Memory Slot: N/A
• RS485: N/A
• Alarm: N/A
• PIR Sensor Range: N/A

• Power Supply: DC12V
• Power Consumption: < 4.5W
• Working Environment: -30°C~+50°C, Less than 95% RH
• Ingress Protection: IP66
• Vandal Resistance: IK10
• Dimensions: Φ110mm×81mm / 4.3" x 3.2" inches
• Weight: 0.39kg
