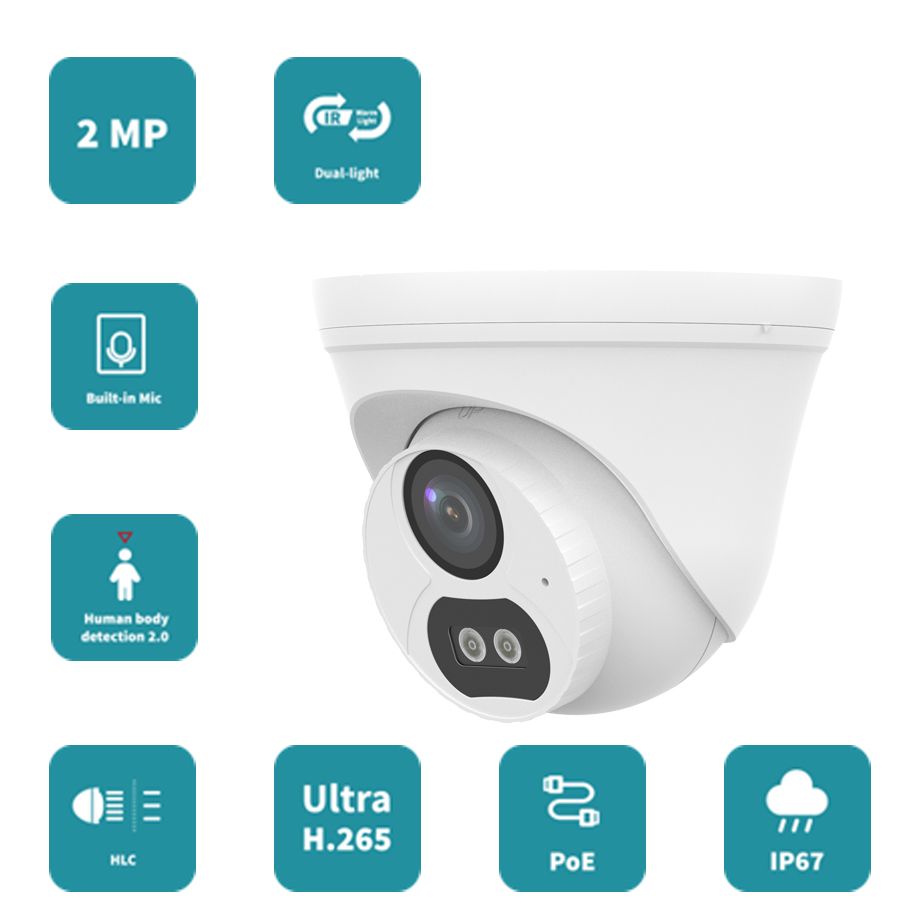

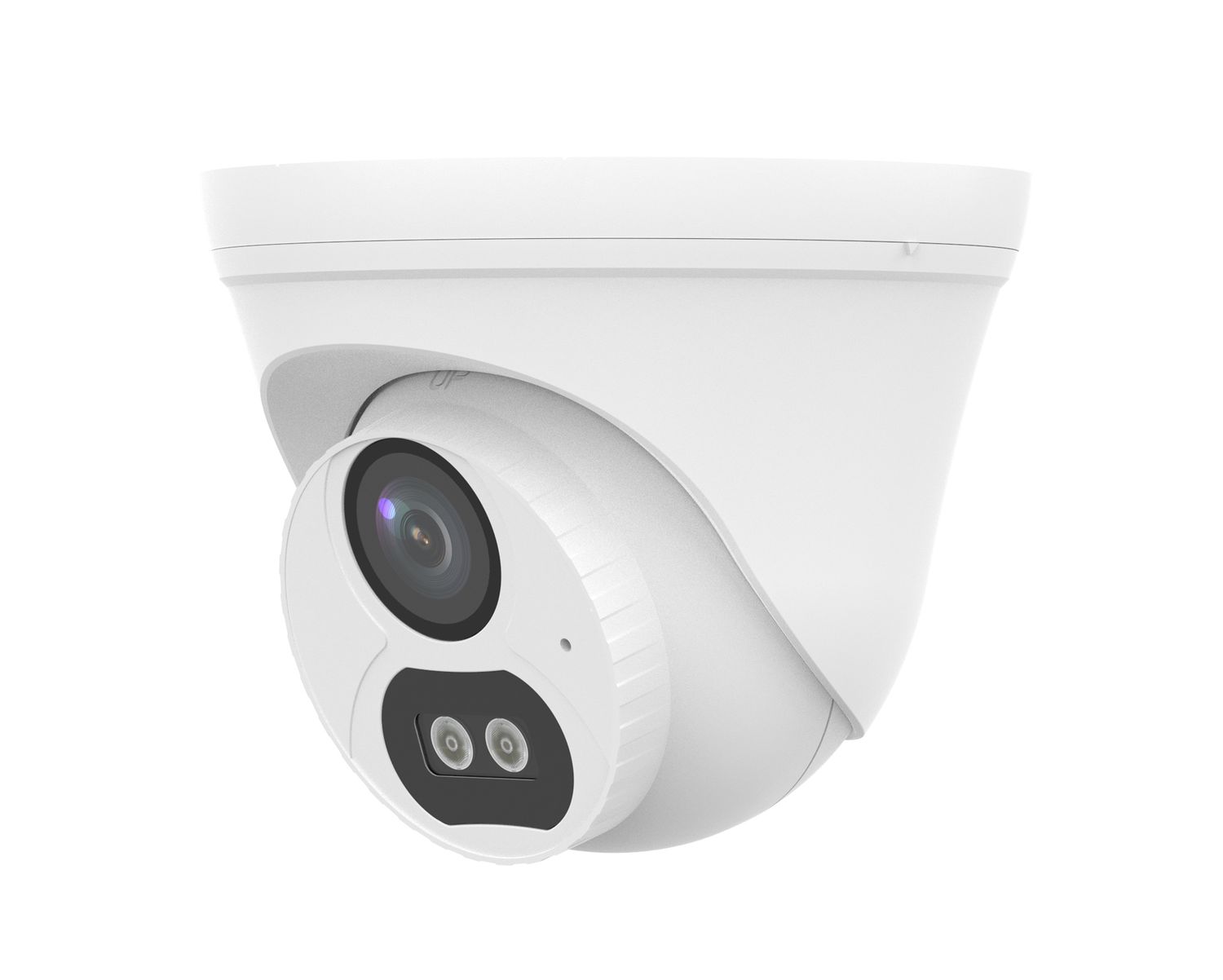

Qube Dome Avocet IP-2.0MP Fixed Dual Light Turret Network Camera

More IP Premium Cams & Recorder Options, Click here

• High quality image with 2MP, 1/3" CMOS sensor
• 2MP(1920*1080)@30fps;720P (1280*720)@30fps
• Ultra 265, H.265, H.264
• 2D/3D DNR (Digital Noise Reduction)
• ROI (Region of Interest)
• ONVIF Conformance
• Smart IR, up to 30m (98ft) IR distance
• 3 Axis
• Built in Mic
• Wide temperature range: 30 ℃ to 60 ℃ ( 22 ℉ to 140 ℉)
• Support PoE power supply
• IP67

• Model: Dome Avocet IP-2.0MP Fixed Dual Light Turret Network Camera
• CAMERA
  • Max Resolution: 2 MP
  • Sensor: 1/3.0" CMOS
  • Min. Illumination
  • Colour: 0.005Lux (F1.6, AGC ON)
  • 0 Lux with IR on
  • Day/Night: IR cut filter with auto switch (ICR)
  • Shutter: Auto/Manual, 1 to 1/100000 s
  • Adjustment Angle: Pan: 0° ~ 360°, Tilt: 0° ~ 80°, Rotate: 0° ~ 360°
  • S/N: > 52 dB
  • WDR: DWDR
• LENS
  • Focal Length: 2.8 mm
  • Iris: F1.6
  • Field of View (H): 85.1°
  • Field of View (V): 46.6°
  • Field of View (D): 95.5°
• DORI
  • DORI Distance (Lens): 2.8 mm
  • DORI Distance (Detect): 51.4m(168.7ft)
  • DORI Distance (Observe): 20.6m(67.5ft)
  • DORI Distance (Recognize): 10.3m(33.7ft)
  • DORI Distance (Identify): 5.1m(16.9ft)
• ILLUMINATOR
  • Supplemental Light: Dual light
  • Illumination Distance (IR): 30 m (98.4 ft)
  • Illumination Distance (Warm Light): 15 m (49.3 ft)
  • Wavelength: 850 nm
  • IR On/Off Control: Auto/Manual
• VIDEO
  • Video Compression: Ultra 265, H.265, H.264
  • H.264 Code Profile: Baseline profile, Main profile, High profile
  • Frame Rate
  • Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
  • Sub Stream: 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps
  • Video Bit Rate: 128 Kbps to 6144 Kbps
  • U code: Support
  • OSD: Up to 4 OSDs
  • Privacy Mask: Up to 4 areas
  • ROI: Up to 8 areas
  • Video Stream: Dual streams
• IMAGE
  • White Balance: Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white balance
  • Digital Noise: Reduction 2D/3D DNR
  • Smart IR: Support
  • Flip: Normal, Flip vertical, Flip horizontal, 180°
  • Dewarping: N/A
  • HLC: Support
  • BLC: Support
  • Defog: Digital defog
• EVENTS
  • Basic Detection: Motion detection, Audio detection, Human body detection 2.0
  • General Function
  • Watermark
  • IP address filtering
  • Access policy
  • ARP protection
  • RTSP authentication
  • User authentication
  • HTTP authentication
• AUDIO
  • Audio Compression: G.711U, G.711A
  • Audio Bitrate: 64 Kbps
  • Two way Audio: N/A
  • Suppression: Support
  • Sampling Rate: 8 kHz
• NETWORK
  • Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, DNS, DDNS, NTP, UPnP, HTTP, QoS, RTCP, RTMP
  • Compatible Integration
  • ONVIF (Profile S, Profile T) ,
  • API, SDK
  • User/Host: Up to 32 users. 2 user levels: administrator and common user
  • Client: Uniarch client, Uniarch app
  • Web Browser: Plug in free live view: Chrome 57+, Firefox 58+, Edge 16+
• INTERFACE
  • Audio I/O: N/A
  • Alarm I/O: N/A
  • Built in Mic: Support
  • Built in Speaker: N/A
  • WiFi: N/A
  • Network: 1 × RJ45 10 M/100 M Base TX Ethernet
  • Video Output: N/A
• CERTIFICATION
  • EMC
  • CE EMC (EN 55032, EN 61000 3 3, EN IEC 61000 3 2, EN 55035)
  • FCC (FCC 47 CFR part15 B)
  • Safety: CE LVD (EN 62368 1)
  • Environment: CE RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
  • Protection: IP67 (IEC 60529)
• GENERAL
  • Power
  • PoE (IEEE 802.3af)
  • Power consumption: Max 3.5W
  • Power Interface: N/A

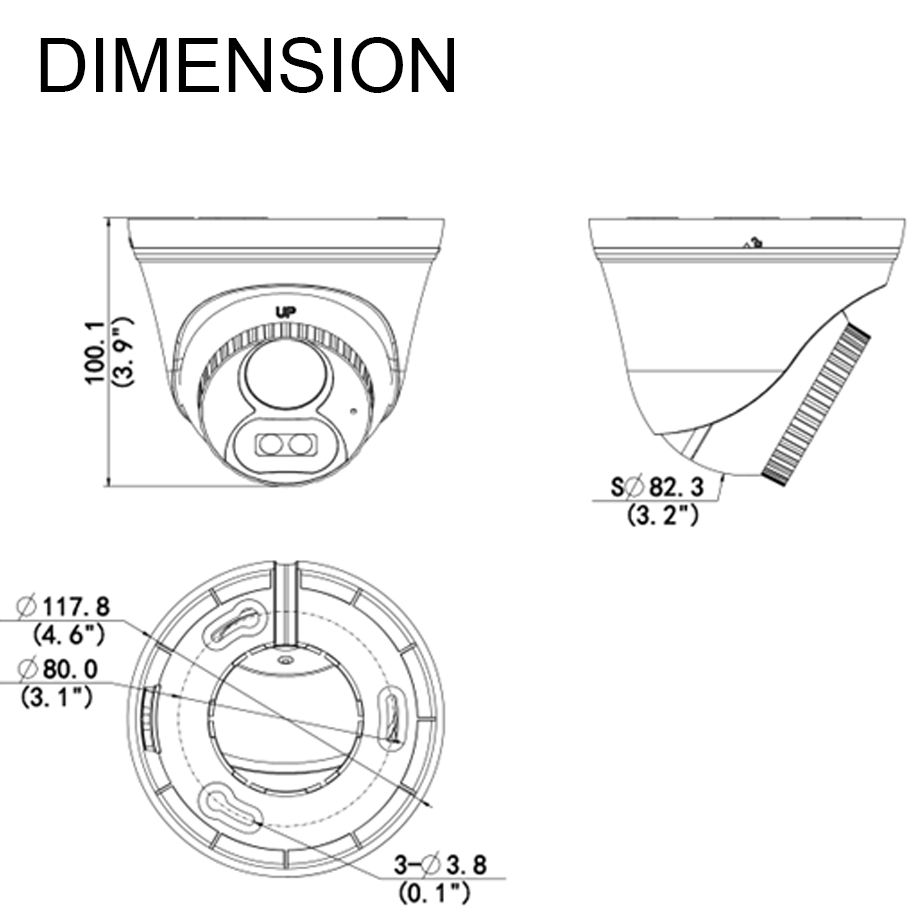

  • Dimensions: Φ117.8 x 100mm (Ø4.6” x 3.9”)
  • Weight: 0.19kg (0.42lb)
  • Material: Graphene + Plastic
  • Working Environment: 30 ℃ to 60 ℃ ( 22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non condensing)
  • Storage Environment: 30 ℃ to 60 ℃ ( 22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non condensing)
  • Surge Protection: 4 KV
  • Reset Button: N/A
  • Web Client Language: 1 Language (English)
