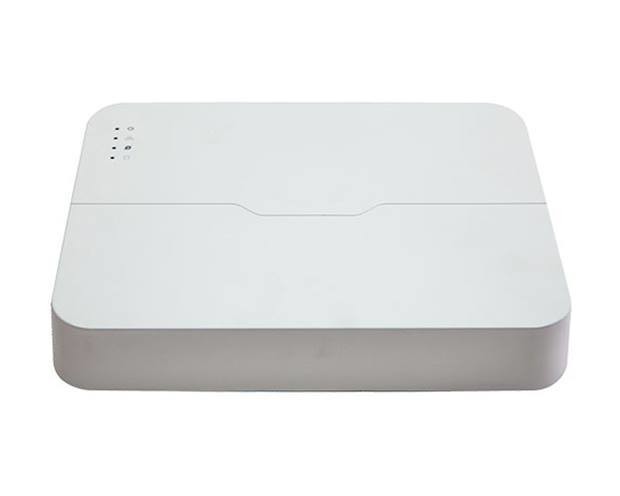

Qube 8LU 8 POE 8 Channel NVR

More IP Premium Recorder Options, Click here

6 Months Installment Available. Pls call our Stores to inquire about qualified credit card.

Download Apps Here:

Features:

• Support Ultra 265/H.265/H.264 video formats

• 8 channel input

• Plug & Play with 8 independent PoE network interfaces

• Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T

• Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution

• Up to 8 Megapixels resolution recording

• HDMI and VGA simultaneous output

• 1 SATA HDD up to 10 TB

• ANR technology to enhance the storage reliability when the network is disconnected

Specification:

Video/Audio Input

• IP Video Input 8-ch

• Audio Output 1-ch, RCA

Network

• Incoming Bandwidth 60Mbps

• Outgoing Bandwidth 64Mbps

• Remote Users 128

• Protocols P2P, UPnP, NTP, DHCP, PPPoE

Video/Audio Output

• HDMI/VGA Output HDMI: 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz

• VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz

• Recording Resolution 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

• Synchronous Playback 8-ch

• Corridor Mode Screen 3/4/5/7/9

Decoding

• Decoding format Ultra 265, H.265, H.264

• Live view/Playback 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

• Capability 1 x 4K@30, 2 x 4MP@30, 4 x 1080p@30, 8 x 720p@30, 16 x D1

Hard Disk

• SATA 1 SATA interface

• Capacity up to 10TB for each disk

Smart

• VCA Detection Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking

• VCA Search Face search, Behavior search

• Statistical Analysis People counting

External Interface

• Network Interface 1 RJ-45 10M/100M self-adaptive Ethernet Interface

• USB Interface Rear panel：2 x USB2.0

PoE

• Interface 8 independent 100 Mbps PoE network interfaces

• Max Power Max 30W for single port

• Max 108W in total ( 13.5W for each )

• Supported Standard IEEE 802.3at, IEEE 802.3af

General

• Power Supply 48V DC

• Power Consumption: 52V DC
• Power Consuption ≤ 8 W (without HDD)

• Working Environment Humidity ≤ 90% RH(non-condensing)

• Dimensions(W×D×H) 270mm×205mm × 42mm (10.6" ×8.1"× 1.7")

• Weight ( without HDD ) 0.59kg ( 1.3 lb ) ≤ 0.68 Kg ( 1.50 lb )
