Qube 8-Channel MUX Network Video Recorder/ 1080P/ 8MP

SKU 96987
P 3,999.00
In stock
1
Product Details

More TVR Recorder Options, Click here



Features:

Support H.265/H.264 video formats
Support TVI,AHD, CVI,CVBS, IP cameras with adaptive access
8-channel BNC input
Support 1-ch HDMI output, 1-ch VGA output at up to 1920*1080

Long transmission distance over coax cable

Specifications
Model-08Q
Video/Audio Input
  • Analog Video Input: 4CH, BNC
  • IP Video Input: 2-ch(only IP up to 6ch),each channel up to 4K
  • Supported Analog Camera Types:
    • Support AHD input:
      • 8MP@15fps(channel1-channel2)
      • 5MP@20fps
      • 4MP@30fps
      • 3MP@30fps (channel1 –channel2)
      • 1080P@30fps
      • 720P@60fps
    • Support TVI input:
      • 8MP@15fps(channel1-channel2)
      • 5MP@20fps
      • 4MP@30fps
      • 3MP@20fps (channel1 – channel2)
      • 1080P@30fps
      • 720P@60fps
    • Support CVI input:
      • 8MP@15fps(channel1-channel2)
      • 5MP@20fps
      • 4MP@30fps
      • 1080P@30fps
      • 720P@30fps
    • Support CVBS input
  • Audio Input: 1-CH, RCA
  • Two-Way Audio: 1-CH, RCA
  • Channel Associated Audio: 1-CH, RCA

Network
  • Incoming Bandwidth: 56Mbps
  • Outgoing Bandwidth: 64Mbps
  • Remote Users: 128
  • Protocols: TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE

Video/ Audio Output
  • CVBS Output: 1-CH, BNC
  • VGA Output:
    • 1920x1080p/60Hz,
    • 1920x1080p/50Hz,
    • 1600x1200/60Hz,
    • 1280x1024/60Hz,
    • 1280x720/60Hz,
    • 1024x768/60Hz
  • HDMI Output:
    • 1920x1080p/60Hz,
    • 1920x1080p/50Hz,
    • 1600x1200/60Hz,
    • 1280x1024/60Hz,
    • 1280x720/60Hz,
    • 1024x768/60Hz
  • Audio Output: 1-CH, RCA
  • Synchronous Playback: 8-CH

Encoding
  • Recording Resolution: 8MP Lite/5MP Lite/4MP Lite /3MP/1080P/960P/720P/960H/4CIF/CIF
  • Recording Frame Rate:
    • Main stream:
      • 8MP Lite@8fps(channel1-channel2)
      • 720P@30fps
      • 2MP@15fps
      • 3MP@15fps(channel1 – channel2)
      • 4MP Lite@15fps
      • 5MP Lite@12fps
    • Sub stream:
      • D1@30fps(Max)

Hard Disk
  • SATA: 1 Sata Interface
  • Capacity: Up to 6TB for each HDD

External Interface
  • Network Interface: 1RJ45 10M/100M self-adaptive Ethernet Interface
  • USB Interface: Rear panel:2 x USB2.0
  • Serial Interface: 1xRS485

General
  • Power Supply: 12V DC
  • Power Consumption: ≤ 8 W(without HDD)
  • Working Environment: -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)

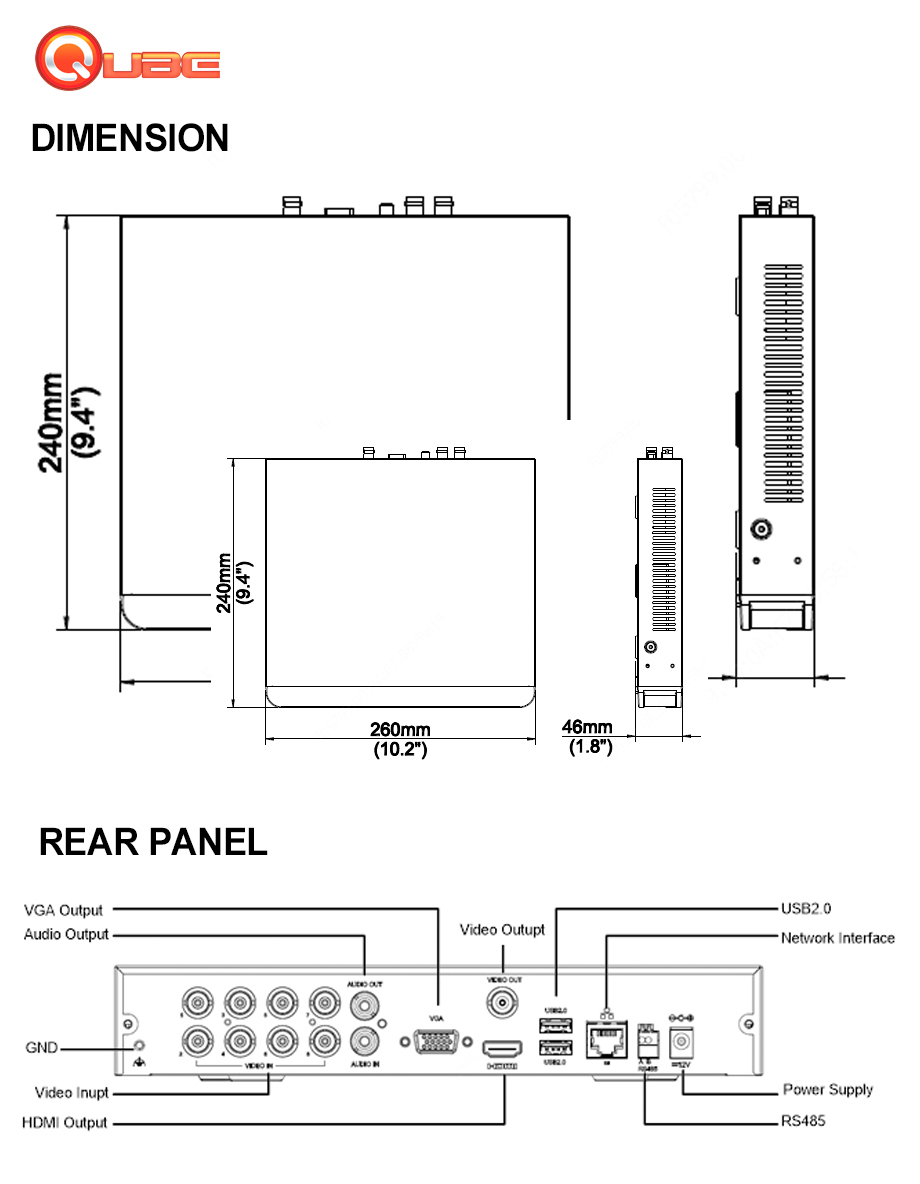

  • Dimension: 260mm ×240mm× 46mm (10.2" × 9.4"×1.8")
  • Weight (w/out HDD): ≤1.1 Kg ( 4.19lb )
