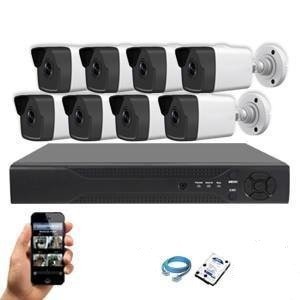

Qube 8 Channel 2mp Digital IP Package w/ Motion Detect® (Up to 80 Meters for POE)

SKU 98335
P 25,750.00
NVR: More Info below
Please choose
Camera 1: More Info below
Please choose
Camera 2: More Info below
Please choose
Camera 3: More Info below
Please choose
Camera 4: More Info below
Please choose
Camera 5: More Info below
Please choose
Camera 6: More Info below
Please choose
Camera 7: More Info below
Please choose
Camera 8: More Info below
Please choose
Hard Drive Option 1:
Please choose
Cable:
Please choose
TV/Monitor:
Please choose
1
Save this product for later
Share this product with your friends
Qube 8 Channel 2mp Digital IP Package w/ Motion Detect® (Up to 80 Meters for POE)
Product Details

Please call our Stores to inquire about qualified credit card.




Download Apps Here:





Features:

Model 8 Channel 8LU NVR

  • Support Ultra 265/H.265/H.264 video formats
  • 8 channel input
  • Plug & Play with 4/8 independent PoE network interfaces
  • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
  • Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
  • Up to 8 Megapixels resolution recording
  • HDMI and VGA simultaneous output
  • 1 SATA HDD up to 10 TB

Camera Features:

PARROT-IPC

KEY FEATURES:

  • High quality image with 2MP, 1/2.7"CMOS sensor
  • 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
  • Ultra 265, H.265, H.264, MJPEG
  • 120dB true WDR technology enables clear image in strong light scene
  • Support 9:16 Corridor Mode
  • Smart IR, up to 30m (98ft) IR distance
  • Audio-in Supported
  • Supports 128 G Micro SD card
  • IP67 protection
  • Support PoE power supply
  • 3-Axis

  • CAMERA
    • Sensor: 1/2.7", 2.0 megapixel, progressive scan, CMOS
    • Minimum Illumination:
    • Colour:
      • 0.01Lux ( F2.0, AGC ON)
      • 0Lux with IR
    • Day/Night: IR-cut filter with auto switch (ICR)
    • Shutter: Auto/Manual, 1 ~ 1/100000s
    • Adjustment angle: Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360°
    • S/N: >52dB
    • WDR: 120dB
  • LENS
    • Lens Type: 2.8mm @2.0, Fixed-focal
    • Lens Mount: M12
    • Angle of View (H): 112.9°
    • Angle of View (V): 59.1°
    • Angle of View (O): 121.2°
    • DORI
      • DORI Distance
        • Lens (mm): 2.8
        • Detect (m): 42.0
        • Observe (m): 16.8
        • Recognize (m): 8.4
        • Identify (m): 4.2
  • ILLUMINATOR
    • IR Range: Up to 30m (98ft) IR range
    • Wavelength: 850nm
    • IR On/Off Control: Auto/Manual
  • VIDEO
    • Video Compression: Ultra 265, H.265, H.264, MJPEG
    • H.264 Code Profile: Baseline profile, Main profile, High profile
    • Frame Rate:
      • Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps
      • Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
    • Video Bit Rate: 128 Kbps~6144 kbps
    • U-code: Supported
    • 9:16 Corridor Mode: Supported
    • OSD: Up to 4 OSDs
    • Privacy Mask: Up to 4 areas
    • ROI: Up to 8 areas
    • Motion Detection: Up to 4 areas
  • IMAGE
    • White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
    • Image Setting: Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser
    • Digital Noise Reduction: 2D/3D DNR
    • Smart IR: Supported
    • Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
    • Dewarping: N/A
    • HLC: Supported
    • BLC: Supported
    • Defog: Digital Defog
  • AUDIO
    • Audio Compression: G.711
    • Suppression: Supported
    • Sampling Rate: 8KHZ
  • STORAGE
    • Edge Storage: Micro SD, up to 128GB
    • Network Storage: ANR,NAS(NFS)
  • NETWORK
    • Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP
    • Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
    • User/Host: Up to 32 users. 2 user levels: administrator and common user
    • Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
    • Client:
      • EZStation
      • EZView
      • EZLive
    • Web Browser: Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
    • Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+
  • INTERFACE
    • Network: 1 * RJ45 10M/100M Base-TX Ethernet
    • Audio-in: Supported
  • CERTIFICATION
    • EMC: FCC: FCC Part 15
    • Safety: CE: EN 60950-1
    • UL: UL60950-1
    • IEC 60950-1
  • GENERAL
    • Power: DC 12V±25%, PoE (IEEE 802.3af)
    • Power consumption: Max 7.0W
    • Power Interface: Ø 5.5mm coaxial power plug
    • Dimensions (Ø x H): Φ118 x 96mm (Φ4.6” x 3.8”)
    • Weight: 0.30kg (0.66lb)
    • Material: Metal + plastic
    • Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
    • Storage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
    • Surge Protection: 4KV
    • Reset Button: N/A
    • Ingress Protection: Ingression protection: IP67

GAMBEL-V2

Key Features
  • High quality image with 2MP, 1/2.8"CMOS sensor
  • 2MP (1920*1080)@ 30/25fps; 720P (1280*720)@ 30/25fps
  • Ultra 265, H.265, H.264
  • Smart IR, up to 30m (98ft) IR distance
  • Day/night functionality
  • 2D/3D DNR (Digital Noise Reduction)
  • IP67 protection
  • Support PoE power supply
  • 3-Axis

Specification

  • CAMERA
    • Sensor: 1/2.8", 2.0 megapixel, progressive scan, CMOS
    • Minimum Illumination:
    • Colour: 0.01Lux (F2.0, AGC ON)
    • 0Lux with IR on
    • Day/Night: IR-cut filter with auto switch (ICR)
    • Shutter: Auto/Manual, 1 ~ 1/100000s
    • Adjustment angle: Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
    • S/N: >52dB
    • WDR: DWDR
  • LENS
    • Lens Type: 4.0mm @1.6, Fixed-focal
    • Lens Mount: M12
    • Angle of View (H): 87.5°
    • Angle of View (V): 46.3°
    • Angle of View (O): 92.4°
  • DORI
    • DORI Distance
      • Lens (mm): 4.0
      • Detect (m): 62.1
      • Observe (m): 24.8
      • Recognize (m): 12.4
      • Identify (m): 6.2
  • ILLUMINATOR
    • IR Range: Up to 30m (98ft) IR range
    • Wavelength: 850nm
    • IR On/Off Control: Auto/Manual
  • VIDEO
    • Video Compression: Ultra 265, H.265, H.264
    • H.264 code profile: Baseline profile, Main profile, High profile
    • Frame Rate:
      • Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
      • Sub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
    • Video Bit Rate: 128 Kbps~6 Mbps
    • OSD: Up to 4 OSDs
    • Privacy Mask: Up to 4 areas
    • ROI: Up to 8 areas
    • Motion Detection: Up to 4 areas
  • IMAGE
    • White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
    • Image Setting: Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser
    • Digital noise reduction: 2D/3D DNR
    • Smart IR: Supported
    • Flip: Normal/Vertical/Horizontal/180°
    • Dewarping: N/A
    • HLC: Supported
    • BLC: Supported
    • Defog: Digital Defog
  • NETWORK
    • Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP
    • Compatible Integration: API, SDK
    • User/Host: Up to 32 users. 2 user levels: administrator and common user
    • Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
    • Client:
      • EZStation
      • EZView
      • EZLive
    • Web Browser: Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+
  • INTERFACE
    • Network: 1 * RJ45 10M/100M Base-TX Ethernet
  • CERTIFICATION
    • EMC: FCC: FCC Part 15
    • Safety: CE: EN 60950-1
    • UL: UL60950-1
    • IEC 60950-1
  • GENERAL
    • Power: Power consumption: Max 5.5W
    • Power Interface: Ø 5.5mm coaxial power plug
    • Dimensions (L × W × H): 161 × 63 ×62mm (6.4” × 2.5” × 2.4”)
    • Weight: 0.27kg (0.60lb)
    • Material: Metal + Plastic
    • Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
    • Storage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
    • Surge Protection: 4KV
    • Reset Button: N/A
    • Ingress Protection: Ingression protection: IP67
