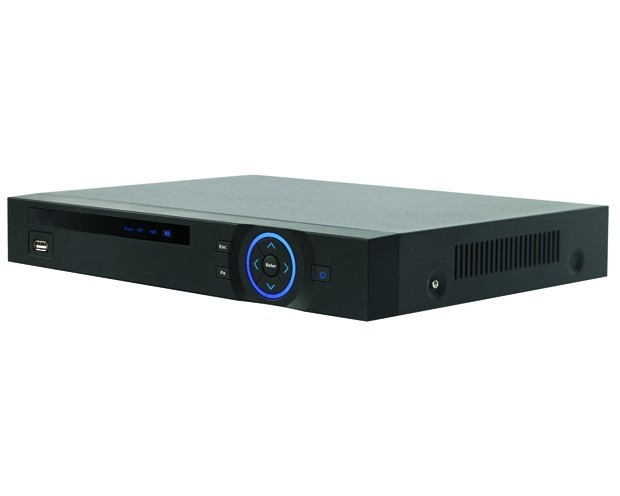

Qube 4CH HDCVR FACE DETECTION / 720P REAL-TIME PLAYBACK "D-F4CVR"

SKU 00404
P 4,900.00
In stock
1
Product Details

More CVR Recorder Options, Click here

P865.67 / Month for 6 Months. Pls call our Stores to inquire about qualified credit card.


Specification

  • Model D-F4CVR
System
  • Main Processor Embedded processor
  • Operating System Embedded LINUX
Video
  • Input 4 channel, BNC
  • Standard HDCVI 720P HDCVI Camera
  • IP 1080P/720P/D1/CIF IP Camera
Audio
  • Input 1 channel, RCA
  • Output 1 channel, RCA
  • Two-way Talk Reuse audio input/output channel 1
Display
  • Interface 1 HDMI, 1 VGA
  • Resolution 1920×1080, 1280×1024, 1280×720, 1024×768
  • Display Split 1/4
  • Privacy Masking 4 rectangular zones (each camera)
  • OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
  • Video/Audio Compression H.264/G.711
  • Resolution 720P(1280×720)/960H(960×576/960×480)/D1/4CIF(704×576/704×480) / CIF(352×288/352×240) / QCIF(176×144/176×120)
  • Record Rate Main Stream: 720P/960H/D1/HD1/2CIF/CIF(1~25/30fps)
  • Extra Stream CIF/QCIF(1~25/30fps), D1(1~12/15fps)
  • Bit Rate 48~4096Kb/s
  • Record Mode Manual, Schedule(Regular(Continuous), MD), Stop
  • Record Interval 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
  • Trigger Events Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Spot, Snapshot, Buzzer & Screen tips
  • Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
  • Alarm Input 4 channel
  • Relay Output 3 channel
  • Playback & Backup
  • Sync Playback 1/4
  • Search Mode Time/Date, MD & Exact search (accurate to second)
  • Playback Functions Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
  • Backup Mode USB Device/Internal SATA burner
Network
  • Ethernet RJ-45 port (10/100M)
  • Network Functions HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P
  • Max. User Access 128 users
  • Smart Phone iPhone, iPad, Android, Windows Phone
Storage
  • Internal HDD 1 SATA port, up to 4TB
  • Auxiliary Interface
  • USB Interface 2 ports(1 Rear), USB2.0
  • RS485 1 port, For PTZ Control
General
  • Power Supply DC12V/2A
  • Power Consumption 10W(without HDD)
  • Working Environment -10°C ~+55°C / 10%~90%RH / 86~106kpa
  • Dimension(W×D×H) Mini 1U, 325mm×255mm×55mm
  • Weight 1.5KG(without HDD)
