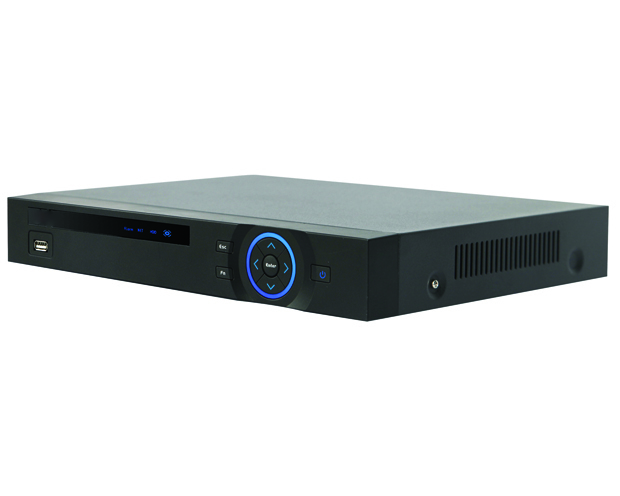

Qube 4CH HDCVR / 3 in 1 / AUDIO / ALARM / 1080P REAL-TIME PLAYBACK "4A-10P-CVR "

SKU 000069
P 5,200.00
In stock
1
Product Details

More CVR Recorder Options, Click here

P1,060.00 / Month for 6 Months. Pls call our Stores to inquire about qualified credit card.


Features:

  • support 4CH= Analog + CVI + IP (maximum 2ch) (3 in 1)
  • H.264 dual-stream video compression
  • All channel 1080P realtime recording
  • HDMI/VGA simultaneous video output
  • 4 channel synchronous realtime playback, GRID interface & smart search
  • ONVIF Version 2.4 conformance
  • 3D intelligent positioning with Qube PTZ dome camera
  • Support 1 SATA HDD up to 4TB, 2 USB2.0
  • Multiple network monitoring

Specification

  • D-A410PCVR-Alarm
System
  • Main Processor Embedded processor
  • Operating System Embedded LINUX
Video
  • Input 4 channel, BNC
  • Standard Analog NTSC(525Line, 60f/s), PAL(625Line, 50f/s)
  • HDCVI 1080P/720P HDCVI Camera
  • IP 1080P/720P/D1/CIF IP Camera
Audio
  • Input 4 channel, RCA
  • Output 1 channel, RCA
  • Two-way Talk Reuse audio input/output channel 1
Display
  • Interface 1 HDMI, 1 VGA
  • Resolution 1920×1080, 1280×1024, 1280×720, 1024×768, 800×600
  • Display Split 1/4
  • Privacy Masking 4 rectangular zones (each camera)
  • OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
  • Video/Audio Compression H.264/G.711
  • Record Rate Main Stream: 1080P/720P/960H/D1(1~25/30fps)
  • Extra Stream CIF/QCIF(1~25/30fps), D1(1~6/7fps)
  • Bit Rate 96~6144Kb/s
  • Record Mode Manual, Schedule(Regular(Continuous), MD), Stop
  • Record Interval 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
  • Trigger Events Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot,
  • Buzzer & Screen tips
  • Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
  • Alarm Input 8 channel
  • Relay Output 3 channel
Playback & Backup
  • Sync Playback 1/4
  • Search Mode Time/Date, MD & Exact search (accurate to second)
  • Playback Functions Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
  • Backup Mode USB Device/Internal SATA burner
Network
  • Ethernet RJ-45 port (10/100M)
  • Network Functions HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P
  • Max. User Access 128 users
  • Smart Phone iPhone, iPad, Android, Windows Phone
Storage
  • Internal HDD 1 SATA port, up to 4TB
  • Auxiliary Interface
  • USB Interface 2 ports(1 Rear), USB2.0
  • RS485 1 port, For PTZ Control
General
  • Power Supply DC12V/2A
  • Power Consumption 10W(without HDD)
  • Working Environment -10°C ~+55°C / 10%~90%RH / 86~106kpa
  • Dimension(W×D×H) Mini 1U, 325mm×255mm×55mm / 12.7" x 10" x 2.1" inches
  • Weight 1.5KG(without HDD)


HDCVI (High Definition Composite Video Interface) is an analog high definition video transmission standard over coaxial cable. It uses progressive scanning and supports two high definition video formats of 1280H and 1920H (1280H is defined as 1280×720 effective resolution; 1920H is defined as 1920×1080 effective resolution). By transmitting uncompressed and lossless signal over point-to-point links, HDCVI is a reliable, none delay, high efficiency and million pixel video transmission technology. HDCVI provide a reliable transmission distance of more than 500m over 75-3 or similar coaxial cable by adaptive corrections of signal loss. In addition, HDCVI owns several independent intellectual property rights, including composite audio signal transmission technology and bi-direction data communication technology.
