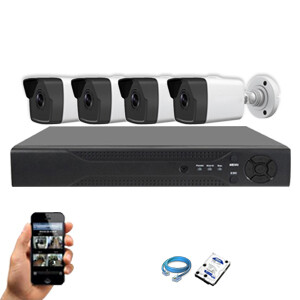

Qube 4 Channel 2mp Digital IP Package w/ Motion Detect® (Up to 80 Meters for POE)

Please call our Stores to inquire about qualified credit card.

Download Apps Here:

Features:

Model 4 Channel 4LU NVR

• Support Ultra 265/H.265/H.264 video formats

• 4 channel input

• Plug & Play with 4 independent PoE network interfaces

• Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T

• Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution

• Up to 8 Megapixels resolution recording

• HDMI and VGA simultaneous output

• 1 SATA HDD up to 10 TB

• ANR technology to enhance the storage reliability when the network is disconnected

Camera Features:

PARROT-IPC

• High quality image with 2MP, 1/2.7"CMOS sensor
• 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
• Ultra 265, H.265, H.264, MJPEG
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Smart IR, up to 30m (98ft) IR distance
• Audio-in Supported
• Supports 128 G Micro SD card
• IP67 protection
• Support PoE power supply
• 3-Axis

• CAMERA
  • Sensor: 1/2.7", 2.0 megapixel, progressive scan, CMOS
  • Minimum Illumination:
  • Colour:
    • 0.01Lux ( F2.0, AGC ON)
  • 0Lux with IR
  • Day/Night: IR-cut filter with auto switch (ICR)
  • Shutter: Auto/Manual, 1 ~ 1/100000s
  • Adjustment angle: Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360°
  • S/N: >52dB
  • WDR: 120dB
• LENS
  • Lens Type: 2.8mm @2.0, Fixed-focal
  • Lens Mount: M12
  • Angle of View (H): 112.9°
  • Angle of View (V): 59.1°
  • Angle of View (O): 121.2°
  • DORI
  • DORI Distance
  • Lens (mm): 2.8
  • Detect (m): 42.0
  • Observe (m): 16.8
  • Recognize (m): 8.4
  • Identify (m): 4.2
• ILLUMINATOR
  • IR Range: Up to 30m (98ft) IR range
  • Wavelength: 850nm
  • IR On/Off Control: Auto/Manual
• VIDEO
  • Video Compression: Ultra 265, H.265, H.264, MJPEG
  • H.264 Code Profile: Baseline profile, Main profile, High profile
  • Frame Rate:
  • Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps
  • Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
  • Video Bit Rate: 128 Kbps~6144 kbps
  • U-code: Supported
  • 9:16 Corridor Mode: Supported
  • OSD: Up to 4 OSDs
  • Privacy Mask: Up to 4 areas
  • ROI: Up to 8 areas
  • Motion Detection: Up to 4 areas
• IMAGE
  • White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
  • Image Setting: Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser
  • Digital Noise Reduction: 2D/3D DNR
  • Smart IR: Supported
  • Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
  • Dewarping: N/A
  • HLC: Supported
  • BLC: Supported
  • Defog: Digital Defog
• AUDIO
  • Audio Compression: G.711
  • Suppression: Supported
  • Sampling Rate: 8KHZ
• STORAGE
  • Edge Storage: Micro SD, up to 128GB
  • Network Storage: ANR,NAS(NFS)
• NETWORK
  • Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP
  • Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
  • User/Host: Up to 32 users. 2 user levels: administrator and common user
  • Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
  • Client:
  • EZStation
  • EZView
  • EZLive
  • Web Browser: Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
  • Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+
• INTERFACE
  • Network: 1 * RJ45 10M/100M Base-TX Ethernet
  • Audio-in: Supported
• CERTIFICATION
  • EMC: FCC: FCC Part 15
  • Safety: CE: EN 60950-1
  • UL: UL60950-1
  • IEC 60950-1
• GENERAL
  • Power: DC 12V±25%, PoE (IEEE 802.3af)
  • Power consumption: Max 7.0W
  • Power Interface: Ø 5.5mm coaxial power plug
  • Dimensions (Ø x H): Φ118 x 96mm (Φ4.6” x 3.8”)
  • Weight: 0.30kg (0.66lb)
  • Material: Metal + plastic
  • Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
  • Storage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
  • Surge Protection: 4KV
  • Reset Button: N/A
  • Ingress Protection: Ingression protection: IP67

GAMBEL-V2

• High quality image with 2MP, 1/2.8"CMOS sensor
• 2MP (1920*1080)@ 30/25fps; 720P (1280*720)@ 30/25fps
• Ultra 265, H.265, H.264
• Smart IR, up to 30m (98ft) IR distance
• Day/night functionality
• 2D/3D DNR (Digital Noise Reduction)
• IP67 protection
• Support PoE power supply
• 3-Axis

Specification

• CAMERA
  • Sensor: 1/2.8", 2.0 megapixel, progressive scan, CMOS
  • Minimum Illumination:
  • Colour:
    • 0.01Lux (F2.0, AGC ON)
  • 0Lux with IR on
  • Day/Night: IR-cut filter with auto switch (ICR)
  • Shutter: Auto/Manual, 1 ~ 1/100000s
  • Adjustment angle: Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
  • S/N: >52dB
  • WDR: DWDR
• LENS
  • Lens Type: 4.0mm @1.6, Fixed-focal
  • Lens Mount: M12
  • Angle of View (H): 87.5°
  • Angle of View (V): 46.3°
  • Angle of View (O): 92.4°
• DORI
  • DORI Distance
  • Lens (mm): 4.0
  • Detect (m): 62.1
  • Observe (m): 24.8
  • Recognize (m): 12.4
  • Identify (m): 6.2
• ILLUMINATOR
  • IR Range: Up to 30m (98ft) IR range
  • Wavelength: 850nm
  • IR On/Off Control: Auto/Manual
• VIDEO
  • Video Compression: Ultra 265, H.265, H.264
  • H.264 code profile: Baseline profile, Main profile, High profile
  • Frame Rate:
  • Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
  • Sub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
  • Video Bit Rate: 128 Kbps~6 Mbps
  • OSD: Up to 4 OSDs
  • Privacy Mask: Up to 4 areas
  • ROI: Up to 8 areas
  • Motion Detection: Up to 4 areas
• IMAGE
  • White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
  • Image Setting: Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser
  • Digital noise reduction: 2D/3D DNR
  • Smart IR: Supported
  • Flip: Normal/Vertical/Horizontal/180°
  • Dewarping: N/A
  • HLC: Supported
  • BLC: Supported
  • Defog: Digital Defog
• NETWORK
  • Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP
  • Compatible Integration: API, SDK
  • User/Host: Up to 32 users. 2 user levels: administrator and common user
  • Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
  • Client:
  • EZStation
  • EZView
  • EZLive
  • Web Browser: Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+
• INTERFACE
  • Network: 1 * RJ45 10M/100M Base-TX Ethernet
• CERTIFICATION
  • EMC: FCC: FCC Part 15
  • Safety: CE: EN 60950-1
  • UL: UL60950-1
  • IEC 60950-1
• GENERAL
  • Power: Power consumption: Max 5.5W
  • Power Interface: Ø 5.5mm coaxial power plug
  • Dimensions (L × W × H): 161 × 63 ×62mm (6.4” × 2.5” × 2.4”)
  • Weight: 0.27kg (0.60lb)
  • Material: Metal + Plastic
  • Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
  • Storage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
  • Surge Protection: 4KV
  • Reset Button: N/A
  • Ingress Protection: Ingression protection: IP67
