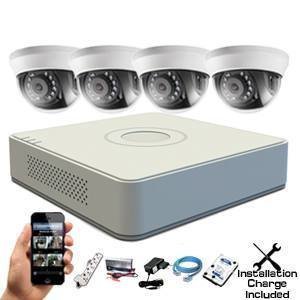

Qube 4 Camera Package for E-Jeep

SKU 95845
P 17,145.00
TVR: More info below
Please choose
Camera Option 1: More Info below
Please choose
Camera Option 2: More Info below
Please choose
Camera Option 3: More Info below
Please choose
Camera Option 4: More Info below
Please choose
Hard Drive Upgrade Option:
Please choose
Power Adapter:
Please choose
Power Inverter:
Please choose
Extension Wire:
Please choose
Cable:
Please choose
TV/Monitor:
Please choose
Installation Charge:
Please choose
Freebies:
Please choose
1
Save this product for later
Share this product with your friends
Qube 4 Camera Package for E-Jeep
Product Details


Please call our Stores to inquire about qualified credit card.

















Camera Features: ( FREE BNC and DC Connectors )


* Installation Info:

  • EXPOSED Wirings – cables are exposed on the wall and clipped together either by cable clip, clamp or tie. Starting price is Php 750 per camera.
  • CONCEALED Wirings – cables are concealed inside a PVC tube or Moulding. It could be laid out on the wall or inside the ceiling. Starting price is Php 1,125 per camera.

* Included on the Installation Amount is TWO (2) On-Site Services amounting to Php 500 per case visit within the warranty period. After the two onsite service has been consumed, succeeding requests for On-site Service will have an On Site Service Fee amounting to Php 500 plus applicable Transportation Charge if outside Metro Manila.


TVR Features:


Specification

  • Model 8CHR-Acad-X
System
  • Main Processor Embedded processor
  • Operating System Embedded LINUX
Video
  • Input 8 channel, BNC
  • Standard Analog NTSC/PAL
  • HDCVI 720P HDCVI Camera
  • IP Support 2ch 1080P/720P IP Camera
Audio
  • Input 4 channel, RCA
  • Output 1 channel, RCA
  • Two-way Talk Reuse audio input/output channel 1
Display
  • Interface 1 HDMI, 1 VGA
  • Resolution 1920×1080, 1280×1024, 1280×720, 1024×768
  • Display Split 1/4/8
  • Privacy Masking 4 rectangular zones (each camera)
  • OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
  • Video/Audio Compression H.264/G.711
  • Record Rate Main Stream: 1*720P(1~25/30fps)+7*(1~15fps)/960H/D1 (1~25/30fps)
  • Extra Stream CIF/QCIF(1~12/15fps)
  • Bit Rate 96~4096Kb/s
  • Record Mode Manual, Schedule(Regular(Continuous), MD), Stop
  • Record Interval 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
  • Trigger Events Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot,
  • Buzzer & Screen tips
  • Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
  • Alarm Input 8 channel
  • Relay Output 3 channel
Playback & Backup
  • Sync Playback 1/4/9
  • Search Mode Time/Date, MD & Exact search (accurate to second)
  • Playback Functions Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
  • Backup Mode USB Device/Internal SATA burner/Network
Network
  • Ethernet RJ-45 port (10/100M)
  • Network Functions HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P
  • Max. User Access 128 users
  • Smart Phone iPhone, iPad, Android, Windows Phone
Storage
  • Internal HDD 1 SATA port, up to 4TB
  • Auxiliary Interface
  • USB Interface 2 ports(1 Rear), USB2.0
  • RS485 1 port, For PTZ Control
General
  • Power Supply DC12V/1.5A
  • Power Consumption 10W(without HDD)
  • Working Environment -10°C ~+55°C / 10%~90%RH / 86~106kpa
  • Dimension(W×D×H) Mini 1U, 325mm×255mm×55mm
  • Weight 1.5KG(without HDD)


K16-TVR


  • H.265+/H.265/H.264+/H.264 encoding for the main stream
  • Support HD-TVI, CVI, AHD, Analog cameras with adaptive access (4 in 1)
  • 4CH support 3MP, All Channel support 2MP Camera
  • Long distance transmission over UTP and coaxial cable
  • 16-ch synchronous playback
  • Two-way Audio:1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)
  • Interface Type:1 SATA
  • Capacity: Up to 6 TB capacity for each disk
  • USB Interface:2 USB 2.0
  • Power Supply: | 12 VDC
  • Consumption: | ≤ 7.5W(without hard disks)
  • Working Temperature: | -10 ºC to +55 ºC (14 ºF to 131 ºF)
  • Working Humidity: | 10% to 90%
  • Dimensions: | 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
  • Weight: | ≤ 1.78 kg (3.9 lb)



Camera Features:

CORY CMOS CHIPSET / 1MP / FIXED LENS / 30M / WATERPROOF / 720P


  • CVi
  • Max 30fps@720P
  • HD and SD output switchable
  • 3.6mm fixed lens
  • Max. IR length 30m, Smart IR
  • IP67, DC12V

Camera

  • Image Sensor 1/3" CMOS
  • Effective Pixels 1280(H)×720(V), 1MP
  • Electronic Shutter 1/30~1/100000s
  • Video Frame Rate 25/30fps@720P
Synchronization Internal
  • Min. Illumination 0.01Lux@F1.2(AGC ON), 0Lux IR on
  • Video Output 1-channel BNC high definition video output / CVBS video output (Can switch)
Camera Features
  • Max. IR LEDs Length Up to 30m (98feet)
  • Day/Night Auto / Manual
  • Noise Reduction 2D
Lens
  • Focal length 3.6mm
  • Angle of View H: 72.3°(91.6°/46°)
  • Mount Type M12
General
  • Power Supply DC12V±25%
  • Power Consumption Max 2.8W (12V DC, IR on)
  • Working Environment --40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
  • Ingress Protection: IP67
  • Dimensions Φ93.4mm×79.4mm (Φ3.68"×3.13")
  • Weight 0.35kg
  • Casing: Aluminum
