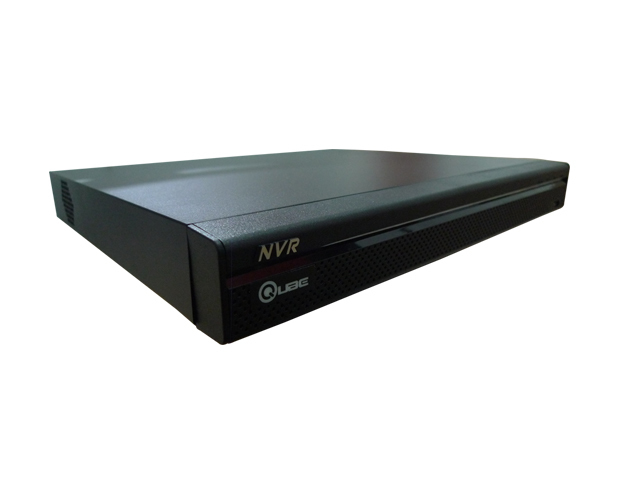

Qube 32CH 32CHK-IP UP TO 12MP RESOLUTION PREVIEW & PLAYBACK (2HDD)

SKU 11001
P 12,150.00
In stock
1
Product Details

More IP Premium Recorder Options, Click here

P2,146.50 / Month for 6 Months. Pls call our Stores to inquire about qualified credit card.


Model 32CHK-IP

  • Main Processor Dual-core embedded processor
  • Operating System Embedded LINUX

Video& Audio

  • IP Camera Input 32 channel
  • Two-way Talk 1channel Input, 1channel Output, RCA

Display

  • Interface 1 HDMI , 1 VGA
  • Resolution 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768
  • Display Split 1/4/8/9/16
  • OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Recording

  • Compression H.265/H.264/MJPEG
  • Resolution 12Mp, 8Mp, 6Mp, 5Mp, 3Mp, 1080P, 1.3Mp, 720P & etc.
  • Record Rate 192Mbps
  • Bit Rate 1~ 20Mbps
  • Record Mode Manual, Schedule(Regular(Continuous), MD, Alarm), Stop
  • Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec

Video Detection & Alarm

  • Trigger Events Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips
  • Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
  • Alarm Input 8 channel
  • Relay Output 3 channel

Playback & Backup

  • Sync Playback 1/4/9/16
  • Search Mode Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
  • Playback Function Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
  • Backup Mode USB Device/Internal SATA burner

Network

  • Ethernet 1 RJ-45 port (10/100/1000Mbps)
  • PoE 8 ports (IEEE802.3at/af) (for -8P model)
  • Network Function HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.)
  • Max. User Access 128 users
  • Smart Phone iPhone, iPad, Android

Storage

  • Internal HDD 2 SATA III ports, up to 12TB

Auxiliary Interface

  • USB 2 ports (1 Rear USB3.0, 1 Front USB2.0)
  • RS232 1 port, For PC communication& Keyboard
  • RS485 1 port, For PTZ control

General

  • Power Supply: Single, DC12V/4A(for non-PoE model)
  • Single, AC 100~240V, 50/60 Hz(for -8P model)
  • Power Consumption NVR: 15.2W for PoE model(without HDD)
  • PoE: Max 25.5W for single port(for -8P model),120W in total
  • Working Environment -10°C~+55°C/10%~90%RH/86~106kpa
  • Dimension (W×D×H)
  • 1U, 375mm×282mm×56mm for non-PoE model
  • 375mm×327mm×53mm for PoE model
  • Weight 2.65KG for PoE model(without HDD)
