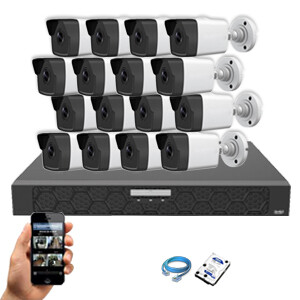

Qube 32 Channel up to 16mp Digital IP Package w/ Motion Detect® (Up to 80 Meters for POE)

97996
P 85,849.00
In stock
1
Product Details

Please call our Stores to inquire about qualified credit card.



Download Apps Here:


NVR Details

Key Features
  • Support Ultra 265/H.265/H.264 video formats
  • 8/16/32-channel input
  • Plug & Play with 8/16 independent PoE network interfaces
  • Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
  • Support 1-ch HDMI, 1-ch VGA. HDMI up to 4K (3840x2160) resolution
  • VGA and HDMI independent output
  • Up to 16 Megapixels resolution recording
  • 2 SATA HDD, up to 10TB for each HDD
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Support cloud upgrade
Specifications

  • Model: 32LU-32CH
  • Video/Audio Input
    • IP Video Input: 32ch
    • Audio Input: 1-ch, RCA
  • Network
    • Incoming Bandwidth: 320Mbps
    • Outgoing Bandwidth: 160Mbps
    • Remote User: 128
    • Protocols: TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPV6
  • Browser
    • IE(IE10/11) for Windows
    • Firefox (version 52.0 and above) for Windows
    • Chrome(version 45 and above) for Windows
    • Edge(version 79 and above) for Windows
  • Video/Audio Output
    • HDMI/VGA Output
    • HDMI: 4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60
    • VGA: 1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1600x1200@60, 1280x720@60, 1024x768@60
    • Recording Resolution: 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
    • Audio Output: 1-ch, RCA
    • Two-way Audio: 1-ch, RCA(Using the audio input and output)
    • Audio Compression: G.711A, G.711U
    • Synchronous Playback: 16-ch
    • Live view display: 1/4/6/8/9/16/25/32
    • Corridor Mode Screen: 3/4/5/7/9/10/12/16/32
  • Snapshot
    • FTP/Schedule/Event Snapshot: 4-ch snapshot, up to D1 resolution
  • Decoding
    • Decoding format: Ultra 265/H.265/H.264
    • Live view/Playback: 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
    • Capability:
    • Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25
    • H.264: 2 x 16MP(4800 x 2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 30 x 720P@30, 32 x D1
  • Hard Disk
    • SATA: 2 SATA interfaces
    • Capacity: Up to 10TB for each disk
  • Smart
    • VCA Detection by Camera: Vehicle Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), UMD(Ultra Motion Detection), Video Metadata, Traffic Monitoring
    • VCA Search: Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report
    • People Counting: People Flow Counting, Crown Density Monitoring
    • Smart Intrusion Prevention (SIP), Vehicle Detection, UMD, Video Metadata, Traffic Monitoring by Camera: Total 8-ch
  • General Alarm
    • General Alarm: Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
    • Alert Alarm: IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
  • External Interface
    • Network Interface: 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
    • USB Interface: Front: 1 x USB2.0, Rear panel: 1 x USB3.0
    • RS232: NA
    • RS485: 1
    • Alarm In: 8-ch
    • Alarm Out: 2-ch
  • PoE
    • Interface: 16 RJ-45 10M/100M self-adaptive Ethernet Interface
    • Max Power:
    • Max 30W for single port
    • Max 240W in total
    • Supported Standard: IEEE 802.3af/at
  • General
    • Power Supply
    • 100~240V AC
    • Power Consumption: ≤ 20W (without HDD)
    • Working Environment: -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
    • Dimensions (W×D×H): 380mm × 322mm × 53mm (15.0"×12.7"×2.1")
    • Weight (without HDD): ≤ 2.6Kg (5.73lb)
  • Certification
    • Certification: CE, FCC, UL, RoHS, WEEE
    • CE: EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
    • FCC: Part15 Subpart B



Camera Features:

Model NVR 1016-K2 16 Channel

  • 16-channel NVR
  • Up to 8 Megapixels
  • Up to 2 SATA interfaces
  • Plug and Play
  • Support dual-os
  • Supported other brand of IP camera
  • Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K
  • Support various VCA detection alarm and VCA search
  • Support H.265/H.264/MPEG4 video formats


ZAZU-IPC

  • Sensor 1/2.5", 8.0 megapixel, progressive scan, CMOS
  • Lens 2.8mm@F2.0
  • Angle of view(H) 118.1°
  • Angle of view(V) 64.0°
  • Angle of view(O) 153.5°
  • DORI Distance Lens 2.8mm Detect(50.4m) Observe(20.2m) Recognize(10.1m) Identify(5.0m)
  • Adjustment Range Pan: 0°~360° Tilt: 0° ~ 90° Rotation: 0° ~ 360°

  • Shutter Auto/Manual, 1~1/100000 s


RIO-IPC

  • /2.5” 8 Megapixel progressive CMOS
  • 8M(3840*2160)
  • 4mm Lens
  • Up to 30m (98 ft) IR range
  • WDR 120dB
  • IP67, PoE
