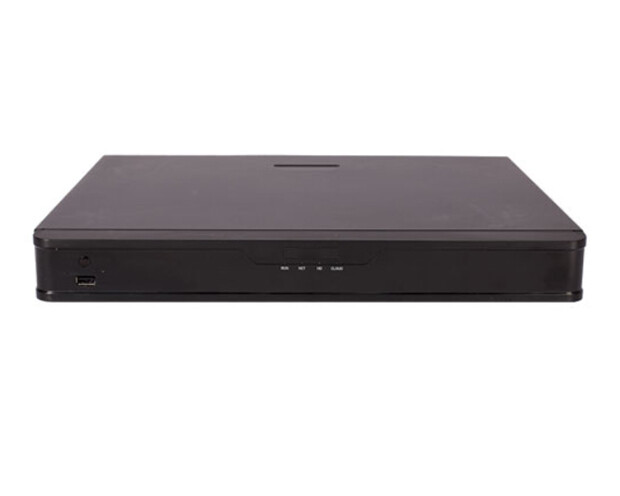

Qube 16LU POE 16 Channel NVR (2HDD Slot)

96084
P 9,900.00
In stock
1
Product Details

More IP Premium Recorder Options, Click here

6 Months Installment Available. Pls call our Stores to inquire about qualified credit card.




Download Apps Here:


Features:

  • Support Ultra265/H.265/H.264 video formats
  • 16-channel input
  • Plug & Play with 16 independent PoE network interfaces
  • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
  • Support HDMI and VGA simultaneous output
  • Up to 8 Megapixels resolution recording
  • 2 SATA HDDs, up to 10TB for each HDD
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Support cloud upgrade




Specification:

Video/Audio Input

  • IP Video Input 16-ch
  • Two-way Audio Input 1-ch, RCA

Network

  • Incoming Bandwidth 12Mbps
  • Outgoing Bandwidth 96Mbps
  • Remote Users 128
  • Protocols P2P, UPnP, NTP, DHCP, PPPoE

Video/Audio Output

  • HDMI/VGA Output VGA:1024X768@60,1280X720@60,1280X1024@60,1920X1080@50,1920X1080@60. HDMI: 4k(3840x2160@30),4k(3840x2160@60),1024X768@60,1280X720@60,1280X1024@60,1920X1080@50, 1920X1080@60
  • Recording Resolution 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
  • Audio Output 1-ch, RCA
  • Synchronous Playback 16-ch
  • Corridor Mode Screen 3/4/5/7/9/10/12/16

Decoding

  • Decoding format Ultra265/H.265/H.264
  • Live view/Playback 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
  • Capability 1 x 4K@30, 2 x 4MP@30, 3 x 3MP@25, 4 x 1080P@30, 8 x 720P@30,16 x D1

Hard Disk

  • SATA 2 SATA interfaces
  • Capacity up to 10TB for each disk

External Interface

  • Network Interface 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
  • USB Interface Front panel: 1 x USB2.0, Rear panel: 1 x USB2.0
  • Alarm In 4-ch
  • Alarm Out 1-ch

PoE

  • Interface 16 independent 100Mbps PoE network interfaces
  • Max Power Max 30W for single port, Max 240W in total ( 15W for each )
  • Supported Standard IEEE 802.3af/at

General

  • Power Supply 220V AC
  • Power Consumption: ≤9 W( without HDD )
  • Working Environment -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
  • Dimensions(W×D×H) 380mm ×315mm × 49.1mm(15.0" × 12.4" ×1.9" )
  • Weight ( without HDD ) ≤2.4kg (5.29 lb)
