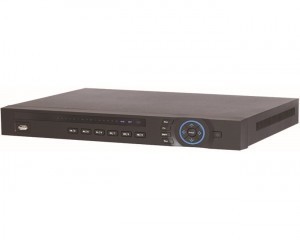

Qube 16CH HDCVR 1080P / 3 in 1 / (Two-way Talk) "Q5116CVI-L"

SKU 000082
P 31,500.00
In stock
1
Product Details

More CVR Recorder Options, Click here

P5,565.00 / Month for 6 Months. Pls call our Stores to inquire about qualified credit card


Specification

Model Q5116CVI-L

  • Main Processor: Embedded processor
  • Operating System: Embedded LINUX
  • Input: 16 channel
  • Video Standard: HDCVI 1080P/720P HDCVI Camera
  • Analog: NTSC(525Line, 60f/s), PAL(625Line, 50f/s),Effio 960H Camera
  • IP: 1080P/720P/D1/CIF IP Camera

Video

  • Input: 16 channel
  • Video Standard: HDCVI 1080P/720P HDCVI Camera
  • Analog: NTSC(525Line, 60f/s), PAL(625Line, 50f/s),Effio 960H Camera
  • IP: 1080P/720P/D1/CIF IP Camera

Audio

  • Input: 4 channel, BNC
  • Output: 1 channel, BNC
  • Two-way Talk: 1 channel input,1channel output, BNC

Display

  • Interface: 2 HDMI,1 VGA,1 TV
  • Resolution: 1920×1080, 1280×1024, 1280×720, 1024×768, 800×600
  • Display Split: 1/4/8/9/16
  • Privacy Masking: 4 rectangular zones (each camera)
  • OSD: Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Recording

  • Video/Audio Compression H.264/G.711
  • Resolution: 1080P(1920×1080)/720P(1280×720)/960H(960×576/960×480)/D1/4CIF(704×576/704×480)/CIF(352×288/352×240)/QCIF(176×144/176×120)
  • Record Rate: Main Stream: 1080P/720P/960H/D1/HD1/2CIF/CIF(1~25/30fps)
  • Extra Stream: CIF/QCIF(1~25/30fps)
  • Bit Rate: 48~8192Kb/s
  • Record Mode: Manual, Schedule(Regular(Continuous), MD), Stop
  • Record Interval: 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec

Video Detection & Alarm

  • Trigger Events: Recording, PTZ, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips
  • Video Detection: Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
  • Alarm Input: 16 channel
  • Relay Output: 6 channel
  • Sync Playback: 1/4/9/16
  • Search Mode: Time/Date, MD & Exact search (accurate to second)
  • Playback Functions: Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
  • Backup Mode: USB Device/eSATA Device/Internal SATA burner

Playback & Backup

  • Sync Playback: 1/4/9/16
  • Search Mode: Time/Date, MD & Exact search (accurate to second)
  • Playback Functions: Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
  • Backup Mode: USB Device/eSATA Device/Internal SATA burner/Network

Network

  • Ethernet RJ-45 port (10/100M/1000M)
  • Network Functions: HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter
  • Max: User Access 128 users
  • Smart Phone: iPhone, iPad, Android, Windows Phone

Storage

  • Internal HDD: 4 SATA ports, up to 16TB
  • External HDD: 1 eSATA port, up to 16TB

Auxiliary Interface

  • USB Interface: 3 ports(2 Rear),USB2.0
  • RS232: 1 port, For PC communication & Keyboard
  • RS485: 1 port RS485 for PTZ control,1 port RS422 for Keyboard

General

  • Power Supply: AC 100~240 V, 50/60 Hz
  • Power Consumption: 40W(without HDD)
  • Working Environment: -10°C ~+55°C / 10%~90%RH / 86~106kpa
  • Dimension(W×D×H) : 1.5U, 17.3"×16.1"×2.8"
  • Weight: 6KG(without HDD)
