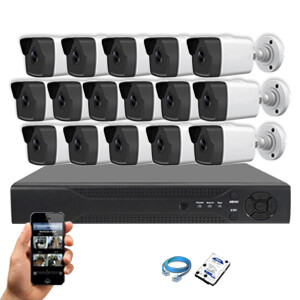

Qube 16 Channel 2mp Digital IP Package w/ Motion Detect® (Up to 80 Meters for POE)

98336
P 45,150.00
In stock
1
Product Details

Please call our Stores to inquire about qualified credit card.




Download Apps Here:





Features:

16LS POE 16 Channel NVR (1HDD Slot)

Key Features
  • Support Ultra 265/H.265/H.264 video formats
  • 8/16-channel input
  • Plug & Play with 8 independent PoE network interfaces
  • Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
  • Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
  • HDMI and VGA simultaneous output
  • Up to 4K resolution recording
  • 1 SATA HDD up to 6TB
  • Support cloud upgrade
Specifications

  • Video/Audio Input
    • IP Video Input: 16-ch
  • Network
    • Incoming Bandwidth: 64Mbps
    • Outgoing Bandwidth: 48Mbps
    • Remote Users: 128
    • Protocols: TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP
  • Video/Audio Output
    • HDMI/VGA Output
    • HDMI: 4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
    • VGA: 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
    • Recording Resolution: 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
    • Audio Output: 1-ch, RCA
    • Audio Compression: G.711A, G.711U
    • Synchronous Playback: 16-ch
    • Live view display: 1/4/6/8/9/16
    • Corridor Mode Screen: 3/4/5/7/9/10/12/16
  • Snapshot
    • FTP/Schedule/Event Snapshot: 1-ch snapshot, up to D1 resolution
  • Decoding
    • Decoding format: Ultra 265/H.265/H.264
    • Live view/ Playback: 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
    • Capability: 1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080p@30, 8 x 720p@30, 16 x D1@25
  • Hard Disk
    • SATA: 1 SATA interface
    • Capacity up to 6TB for each disk
  • Smart
    • VCA Detection by Camera: Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Audio Detection
    • VCA Search: Behavior Search
    • Smart Intrusion Prevention (SIP) by Camera: 4-ch(supports channel 1-4; Alarm only, no image)
  • General Alarm
    • General Alarm: Motion, Tampering, Human Body Detection, Video Loss, Alarm Input
    • Alert Alarm: IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
  • External Interface
    • Network Interface: 1 RJ45 10M/100M self-adaptive Ethernet Interface
    • USB Interface: Rear panel: 2 x USB2.0
  • PoE
    • Interface: 8 RJ45 10M/100M self-adaptive Ethernet Interface
    • Max Power:
    • Max 30W for single port
    • Max 75W in total
    • Supported Standard: IEEE 802.3at, IEEE 802.3af
  • General
    • Power Supply: 52V DC, Power Consumption: ≤9 W (without HDD)
    • Working Environment: -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
    • Dimensions: (W×D×H) 270mm × 205mm × 46mm (10.6"×8.1"×1.8")
    • Weight (without HDD): ≤0.8 kg (1.76 lb)
  • Certification
    • Certification: CE, FCC, UL, RoHS, WEEE
    • CE: EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017
    • FCC: Part15 Subpart B, ANSI C63.4


16LU POE 16 Channel NVR (2HDD Slot)

Key Features:

  • Support Ultra265/H.265/H.264 video formats
  • 16-channel input
  • Plug & Play with 16 independent PoE network interfaces
  • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
  • Support HDMI and VGA simultaneous output
  • Up to 8 Megapixels resolution recording
  • 2 SATA HDDs, up to 10TB for each HDD
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Support cloud upgrade

Specification:

Video/Audio Input

  • IP Video Input 16-ch
  • Two-way Audio Input 1-ch, RCA

Network

  • Incoming Bandwidth 12Mbps
  • Outgoing Bandwidth 96Mbps
  • Remote Users 128
  • Protocols P2P, UPnP, NTP, DHCP, PPPoE

Video/Audio Output

  • HDMI/VGA Output VGA:1024X768@60,1280X720@60,1280X1024@60,1920X1080@50,1920X1080@60. HDMI: 4k(3840x2160@30),4k(3840x2160@60),1024X768@60,1280X720@60,1280X1024@60,1920X1080@50, 1920X1080@60
  • Recording Resolution 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
  • Audio Output 1-ch, RCA
  • Synchronous Playback 16-ch
  • Corridor Mode Screen 3/4/5/7/9/10/12/16

Decoding

  • Decoding format Ultra265/H.265/H.264
  • Live view/Playback 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
  • Capability 1 x 4K@30, 2 x 4MP@30, 3 x 3MP@25, 4 x 1080P@30, 8 x 720P@30,16 x D1

Hard Disk

  • SATA 2 SATA interfaces
  • Capacity up to 10TB for each disk

External Interface

  • Network Interface 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
  • USB Interface Front panel: 1 x USB2.0, Rear panel: 1 x USB2.0
  • Alarm In 4-ch
  • Alarm Out 1-ch

PoE

  • Interface 16 independent 100Mbps PoE network interfaces
  • Max Power Max 30W for single port, Max 240W in total ( 15W for each )
  • Supported Standard IEEE 802.3af/at

General

  • Power Supply 220V AC
  • Power Consumption: ≤9 W( without HDD )
  • Working Environment -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
  • Dimensions(W×D×H) 380mm ×315mm × 49.1mm(15.0" × 12.4" ×1.9" )

  • Weight ( without HDD ) ≤2.4kg (5.29 lb)


Camera Features:

PARROT-IPC

KEY FEATURES:
  • High quality image with 2MP, 1/2.7"CMOS sensor
  • 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
  • Ultra 265, H.265, H.264, MJPEG
  • 120dB true WDR technology enables clear image in strong light scene
  • Support 9:16 Corridor Mode
  • Smart IR, up to 30m (98ft) IR distance
  • Audio-in Supported
  • Supports 128 G Micro SD card
  • IP67 protection
  • Support PoE power supply
  • 3-Axis

  • CAMERA
    • Sensor: 1/2.7", 2.0 megapixel, progressive scan, CMOS
    • Minimum Illumination:
    • Colour:
      • 0.01Lux ( F2.0, AGC ON)
      • 0Lux with IR
    • Day/Night: IR-cut filter with auto switch (ICR)
    • Shutter: Auto/Manual, 1 ~ 1/100000s
    • Adjustment angle: Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360°
    • S/N: >52dB
    • WDR: 120dB
  • LENS
    • Lens Type: 2.8mm @2.0, Fixed-focal
    • Lens Mount: M12
    • Angle of View (H): 112.9°
    • Angle of View (V): 59.1°
    • Angle of View (O): 121.2°
    • DORI
      • DORI Distance
        • Lens (mm): 2.8
        • Detect (m): 42.0
        • Observe (m): 16.8
        • Recognize (m): 8.4
        • Identify (m): 4.2
  • ILLUMINATOR
    • IR Range: Up to 30m (98ft) IR range
    • Wavelength: 850nm
    • IR On/Off Control: Auto/Manual
  • VIDEO
    • Video Compression: Ultra 265, H.265, H.264, MJPEG
    • H.264 Code Profile: Baseline profile, Main profile, High profile
    • Frame Rate:
      • Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps
      • Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
    • Video Bit Rate: 128 Kbps~6144 kbps
    • U-code: Supported
    • 9:16 Corridor Mode: Supported
    • OSD: Up to 4 OSDs
    • Privacy Mask: Up to 4 areas
    • ROI: Up to 8 areas
    • Motion Detection: Up to 4 areas
  • IMAGE
    • White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
    • Image Setting: Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser
    • Digital NoiseReduction: 2D/3D DNR
    • Smart IR: Supported
    • Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
    • Dewarping: N/A
    • HLC: Supported
    • BLC: Supported
    • Defog: Digital Defog
  • AUDIO
    • Audio Compression: G.711
    • Suppression: Supported
    • Sampling Rate: 8KHZ
  • STORAGE
    • Edge Storage: Micro SD, up to 128GB
    • Network Storage: ANR,NAS(NFS)
  • NETWORK
    • Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP
    • Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
    • User/Host: Up to 32 users. 2 user levels: administrator and common user
    • Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
    • Client:
      • EZStation
      • EZView
      • EZLive
    • Web Browser: Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
    • Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+
  • INTERFACE
    • Network: 1 * RJ45 10M/100M Base-TX Ethernet
    • Audio-in: Supported
  • CERTIFICATION
    • EMC: FCC: FCC Part 15
    • Safety: CE: EN 60950-1
    • UL: UL60950-1
    • IEC 60950-1
  • GENERAL
    • Power: DC 12V±25%, PoE (IEEE 802.3af)
    • Power consumption: Max 7.0W
    • Power Interface: Ø 5.5mm coaxial power plug
    • Dimensions (Ø x H): Φ118 x 96mm (Φ4.6” x 3.8”)
    • Weight: 0.30kg (0.66lb)
    • Material: Metal + plastic
    • Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
    • Storage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
    • Surge Protection: 4KV
    • Reset Button: N/A
    • Ingress Protection: Ingression protection: IP67

GAMBEL-V2

Key Features
  • High quality image with 2MP, 1/2.8"CMOS sensor
  • 2MP (1920*1080)@ 30/25fps; 720P (1280*720)@ 30/25fps
  • Ultra 265, H.265, H.264
  • Smart IR, up to 30m (98ft) IR distance
  • Day/night functionality
  • 2D/3D DNR (Digital Noise Reduction)
  • IP67 protection
  • Support PoE power supply
  • 3-Axis

Specification

  • CAMERA
    • Sensor: 1/2.8", 2.0 megapixel, progressive scan, CMOS
    • Minimum Illumination:
    • Colour: 0.01Lux (F2.0, AGC ON)
    • 0Lux with IR on
    • Day/Night: IR-cut filter with auto switch (ICR)
    • Shutter: Auto/Manual, 1 ~ 1/100000s
    • Adjustment angle: Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
    • S/N: >52dB
    • WDR: DWDR
  • LENS
    • Lens Type: 2.8mm and 4.0mm @1.6, Fixed-focal
    • Lens Mount: M12
    • Angle of View (H): 87.5°
    • Angle of View (V): 46.3°
    • Angle of View (O): 92.4°
  • DORI
    • DORI Distance
    • Lens (mm): 4.0
    • Detect (m): 62.1
    • Observe (m): 24.8
    • Recognize (m): 12.4
    • Identify (m): 6.2
  • ILLUMINATOR
    • IR Range: Up to 30m (98ft) IR range
    • Wavelength: 850nm
    • IR On/Off Control: Auto/Manual
  • VIDEO
    • Video Compression: Ultra 265, H.265, H.264
    • H.264 code profile: Baseline profile, Main profile, High profile
    • Frame Rate:
    • Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
    • Sub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
    • Video Bit Rate: 128 Kbps~6 Mbps
    • OSD: Up to 4 OSDs
    • Privacy Mask: Up to 4 areas
    • ROI: Up to 8 areas
    • Motion Detection: Up to 4 areas
  • IMAGE
    • White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
    • Image Setting: Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser
    • Digital noise reduction: 2D/3D DNR
    • Smart IR: Supported
    • Flip: Normal/Vertical/Horizontal/180°
    • Dewarping: N/A
    • HLC: Supported
    • BLC: Supported
    • Defog: Digital Defog
  • NETWORK
    • Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP
    • Compatible Integration: API, SDK
    • User/Host: Up to 32 users. 2 user levels: administrator and common user
    • Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
    • Client:
    • EZStation
    • EZView
    • EZLive
    • Web Browser: Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+
  • INTERFACE
    • Network: 1 * RJ45 10M/100M Base-TX Ethernet
  • CERTIFICATION
    • EMC: FCC: FCC Part 15
    • Safety: CE: EN 60950-1
    • UL: UL60950-1
    • IEC 60950-1
  • GENERAL
    • Power: Power consumption: Max 5.5W
    • Power Interface: Ø 5.5mm coaxial power plug
    • Dimensions (L × W × H): 161 × 63 ×62mm (6.4” × 2.5” × 2.4”)
    • Weight: 0.27kg (0.60lb)
    • Material: Metal + Plastic
    • Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
    • Storage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
    • Surge Protection: 4KV
    • Reset Button: N/A
    • Ingress Protection: Ingression protection: IP67
